VU-510 Videoscope
Intelligent Software:
Strong
intelligent image processing system: with the functions of mage rotation, white
balance, exposure control, negative film and zoom in & out, comparative
measurement, it can meet all kinds of complicated inspection needs.
White Balance: Auto white balance with strong color reduction; Manual-control white balance according to inspection needs.

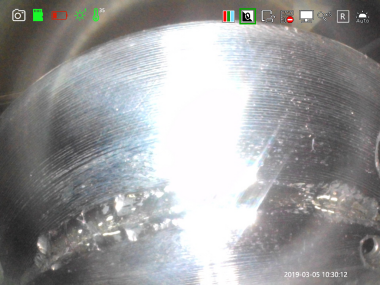

Exposure

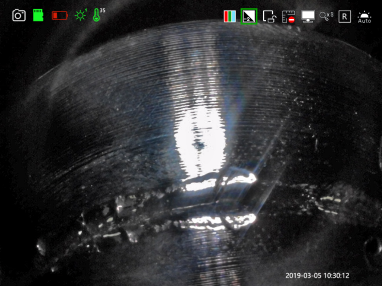

Setting: exposure suppression--the polished object is also inspected clearly;

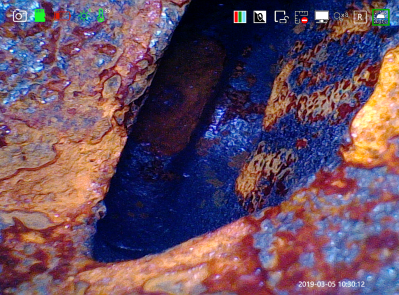

exposure compensation--when checking large cavity, it can be more effective and
clearer.

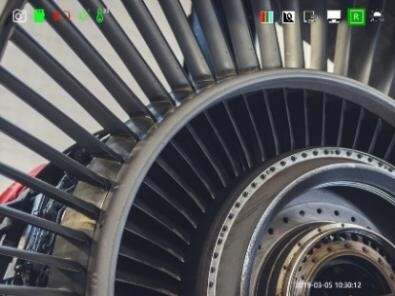

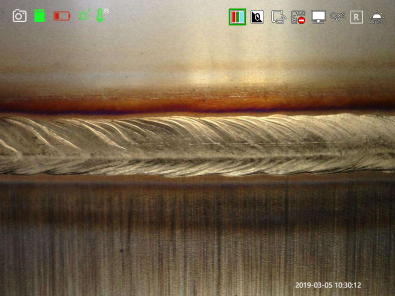

Normal Mode: HD image

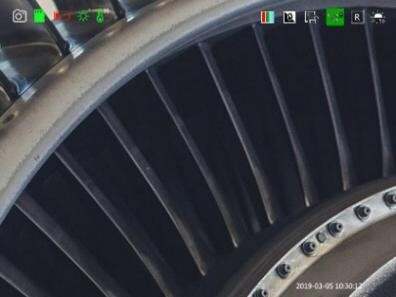

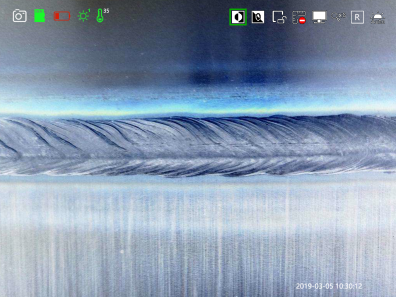

effect Negative Film Mode:
Enhance the ability to compare and analyze the
internal defects of the inspected objects.
Support
8X zoom in/out

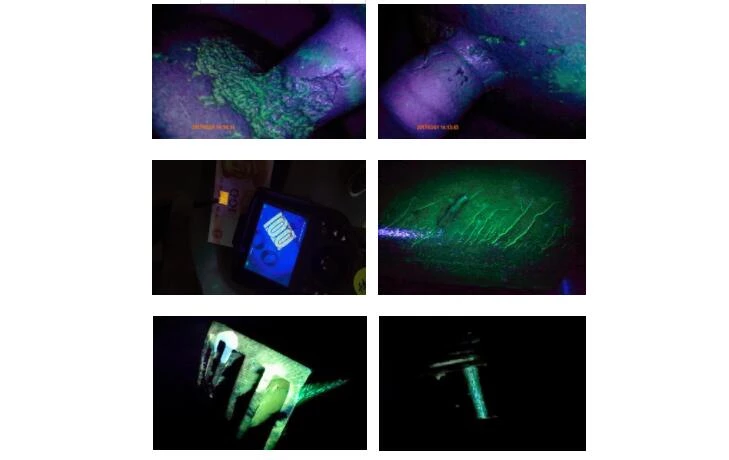

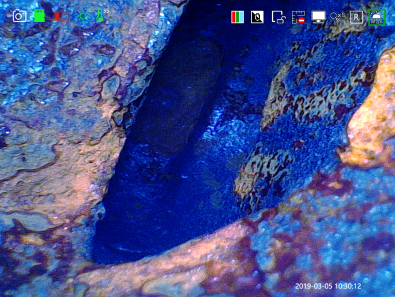

UV Inspection on Site:

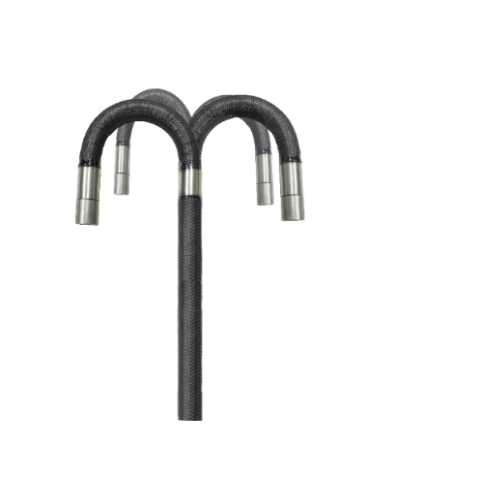

Flexible Articulation Control:
360 ° joystick-control articulation, damping
type positioning design, precise probe locking technology, make the detection
more accurate and efficient. Independently developed technology of
long-distance transmission ensures bending angle ≥100°

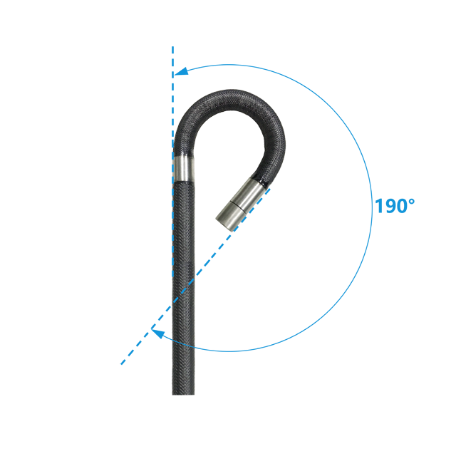

360° precision articulation Maximum bending angle≥190
3 meters
Strong Hardware:
VU510

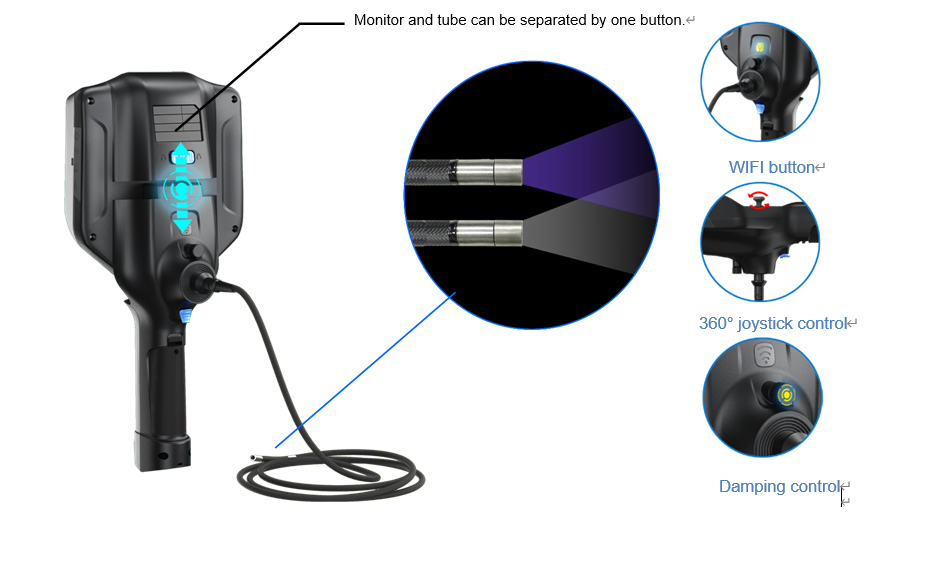

Ultraviolet-light HD intelligent videoscope adopts modular design, the host and
the handle can be separated with one button. The dual light source of the probe
is designed in an integrated way, and an insert tube is equipped with both
ultraviolet light and white light at the same time. By one-key switch through
the universal button, white light can be used to find the direction, and
ultraviolet fluorescence detection can be performed.
Technical Specification:
|
VU510 Series |
VU510 Ultraviolet-light
Intelligent Videoscope |
|
|
Ultraviolet Probe System |
Probe Diameter |
Φ6mm |
|
Camera Pixels |
1MPixel |
|
|
Probe Resolution |
1280×720 |
|
|
Video Resolution |
1280×720 |
|
|
DOF |
10-100mm |
|
|
FOV |
120° |
|
|
Viewing Direction |
Direct-view /90° Sideview |
|
|
Light Source |
UP1: Direct-view probe: Optic fiber UV illumination |
|
|
UP2: Direct-view probe: Fiber UV illumination + LED
White Front illumination |
||
|
UP3: Sideview Probe: LED UV illumination |
||
|
Illuminance |
1200uw/cm2 |
|
|
Tube Length |
1.5/2.0m/3.0 Meters |
|
|

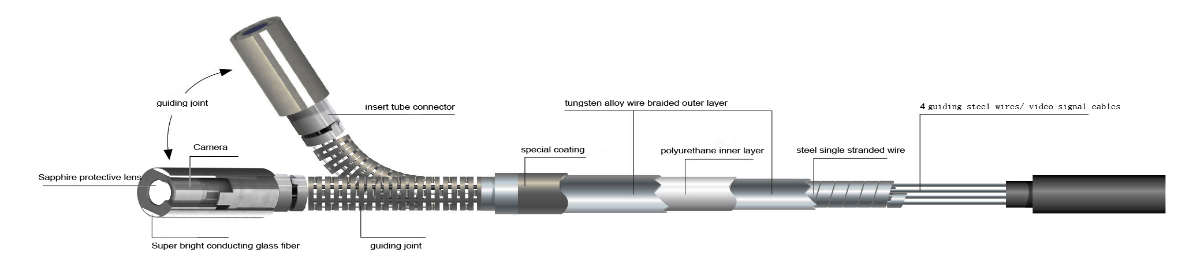

Protecting Device of Durability |
42mm buffer protection device between tube and handle |
|
|
Articulation |
360° joystick-control articulation |
|
|
Bending Angle |
Maximun:190° |
|
|
Probe Positioning |
Damping positioning & articulation lock device |
|
|
Monitor Display System |
Display |
VU510 5.1" color IPS display, all sight viewing angle, sunshade
design |
|
Display Resolution |
1280*960 |
|
|
Zoom In/Out |
8X |
|
|
Language |
English /
French / German / Spanish / Japanese / Traditional
Chinese / Simplified Chinese / Russian / Korean |
|
|
White Balance Suppression |
5 levels adjustable |
|
|
White Balance |
Auto white balance, automatically adjusts and eliminates speckles to
achieve optimal images. |
|
|
Image Effect |
Negative film/ black & white/standard |
|
|

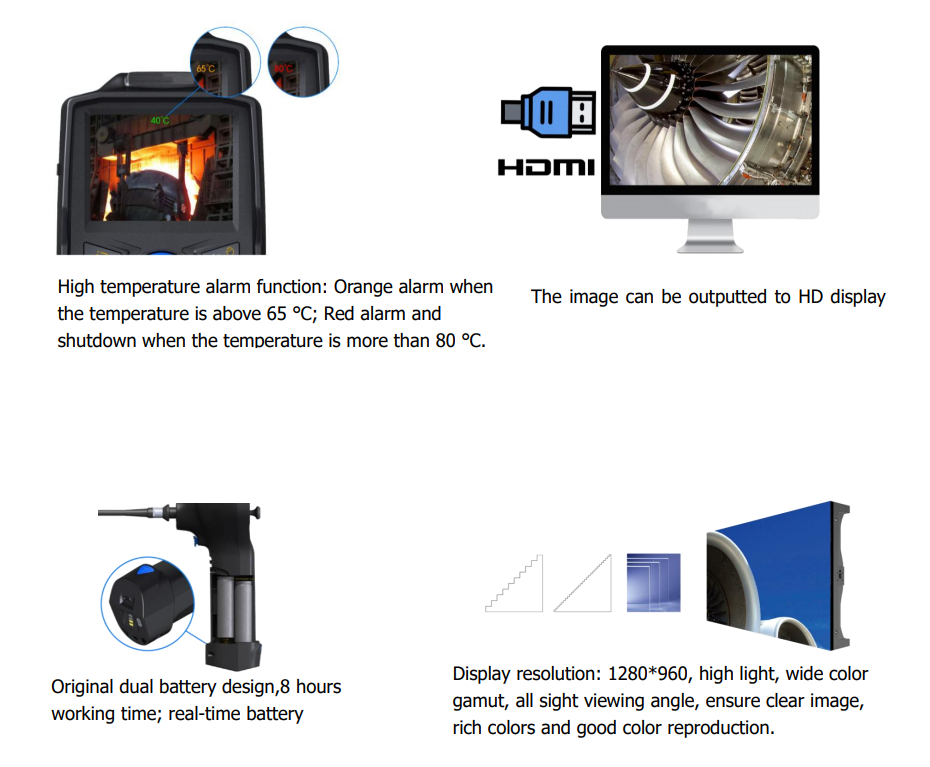

Temperature Indication |
High temperature alarm （optional） |
|
|
IP Level |
Probe/tube: IP67 |
|
|
Software Function |
Playback, image parameters adjust and rotate |
|
|
Structure |
Hand-held integrated design |
|
|
Image/Video Format |
JPEG/MOV |
|
|
Comparative Measurement |
Use measuring probe and analog scale to compare and analyze the
internal defect and size of the inspected object. |
|
|
Data Port |
HDMI video output, Micro USB port with water &dust proof device |
|
|
Working Time |
≥8h |
|
|
Battery Capacity |
3.7V，3200mAh×2 |
|
|
Power Charge |
DC5V, 1A |
|
|
Weight |
≤0.8Kg |
|
|
Wi-Fi Transmission |
Image transmission to
Mobile phone, computer by Wi-Fi(optional) |
|
|
Compatibility |
Interchangeable monitor and tube with different diameters |
|
|
Accessories |
Standard Configuration |
Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card reader:
1pc; 32G. TF card: 1pc; charger: 1pc; USB cable: 1pc; user manual: 1 set |
Remark:
The
length of tube can be customized. The directview sensor can support the UV and
white light in one tube, but the sideview sensor only support one UV LED
lightsource.
