VT-350 Tool Videoscope

Quick Details
Product Code：
VT350-60-100/ VT350-60-150
OEM：
Available
Sample:
Available
Payment:
PayPal,T/T
Place of Origin：
China
Supply Ability：
50 piece per week
Quick Details
  • Camera Pixels
    1 mega pixel
  • Light Source
    Ceramic LED light
  • Tube Diameter
    φ6.0mm
  • Tube Length
    1m/1.5m
  • Display
    3.5 inches IPS full-view display
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

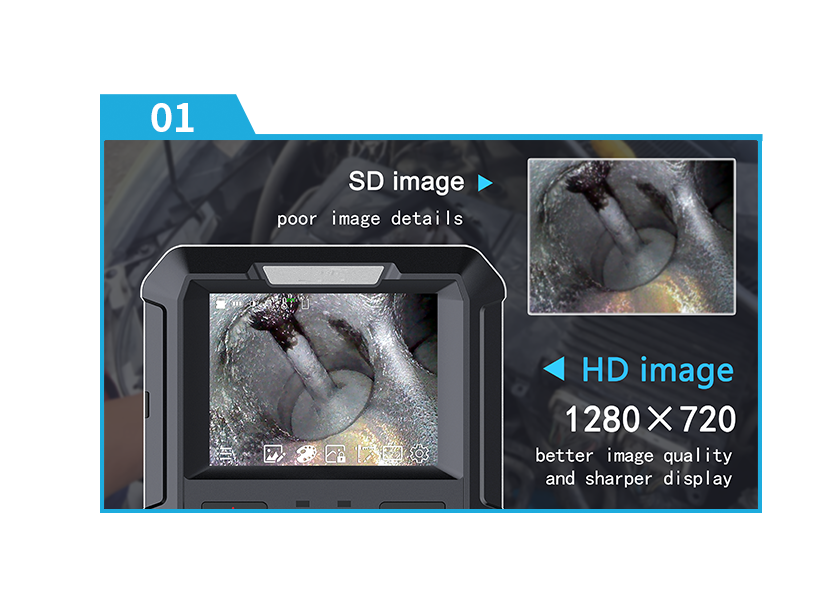

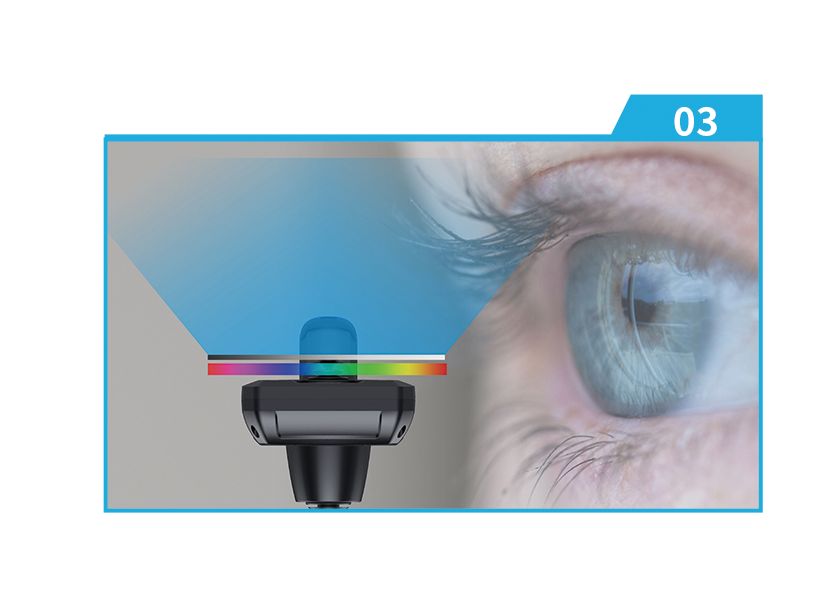

             1280 x 720 Mega HD Image                                                                               3.5 Inches IPS HD Full-view Display

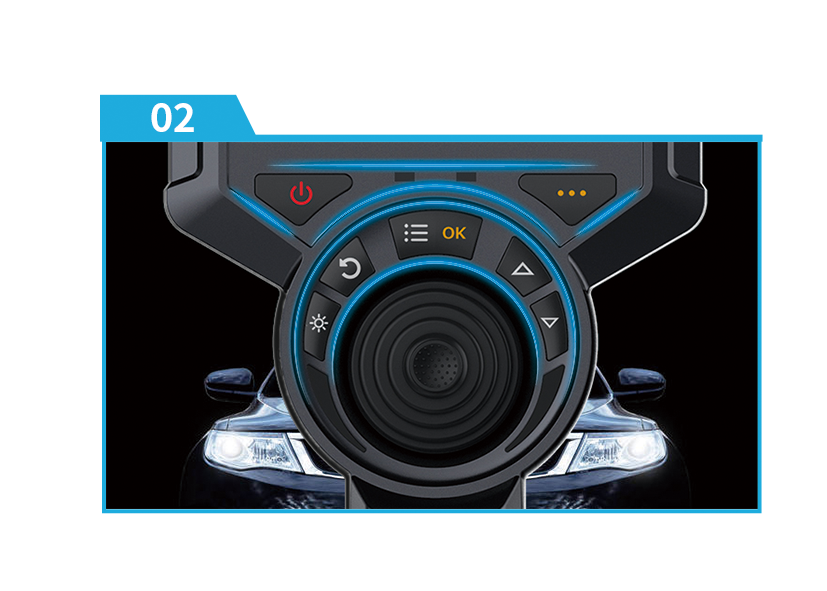

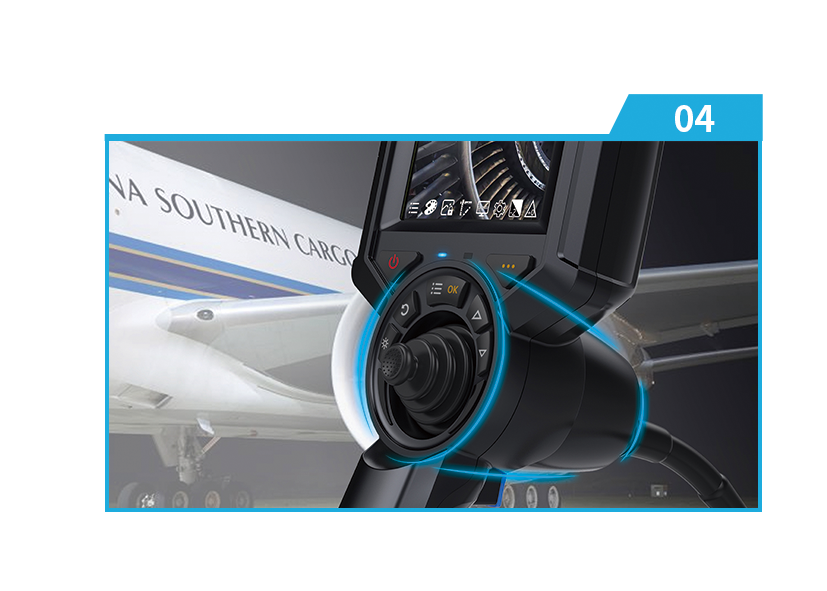

             Car Front Face Design Button                                                                      Aircraft Engine Streamlined Design Joystick

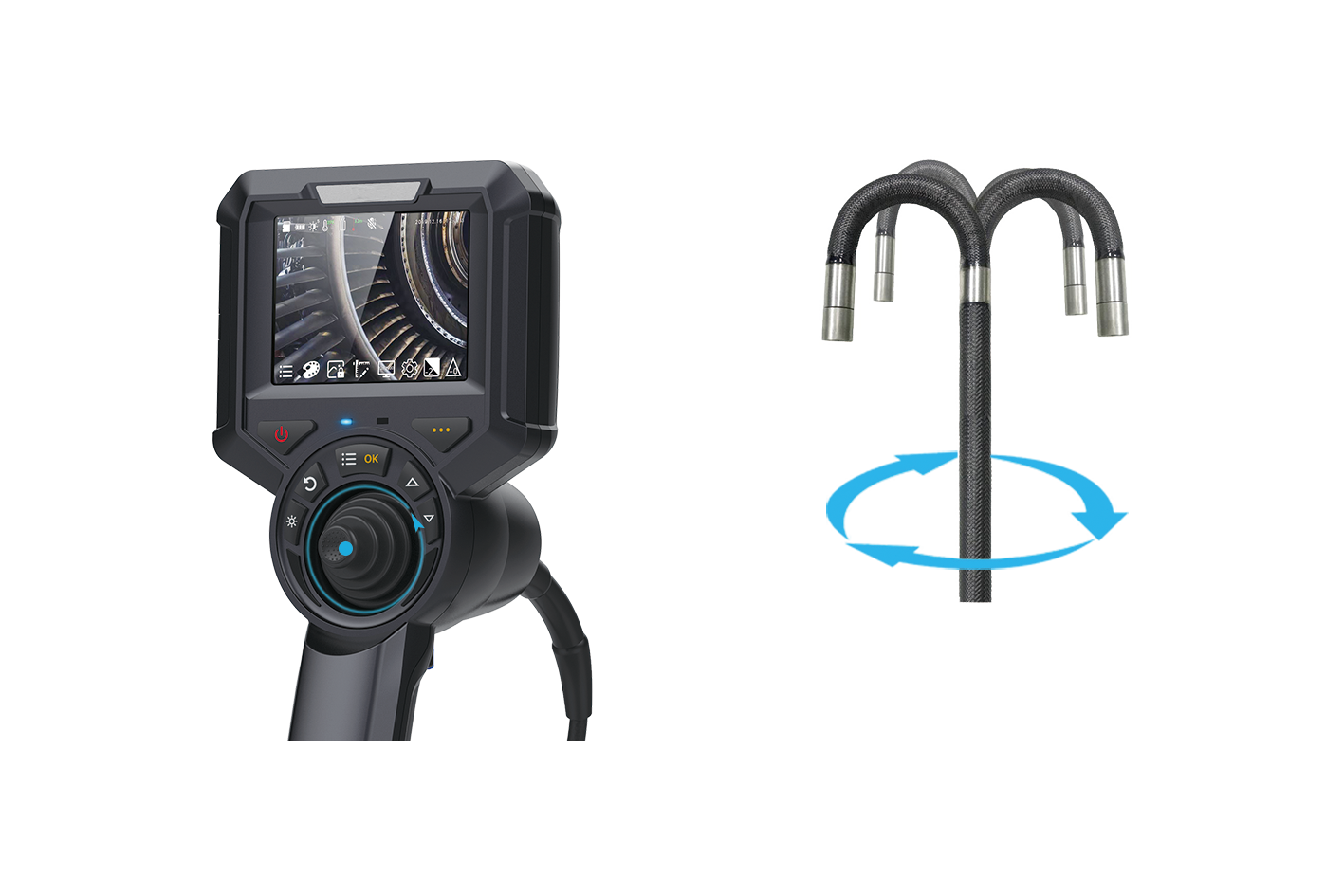

      Joystick-control 360° Accurate Articulation                                        220° large bending angle, ensure to inspect every corner of detected object



Insert hole diameter ≈ pen diameter, it can insert and inspect                                   Super bright ceramic light with 0~5 levels control
as there are holes or gaps

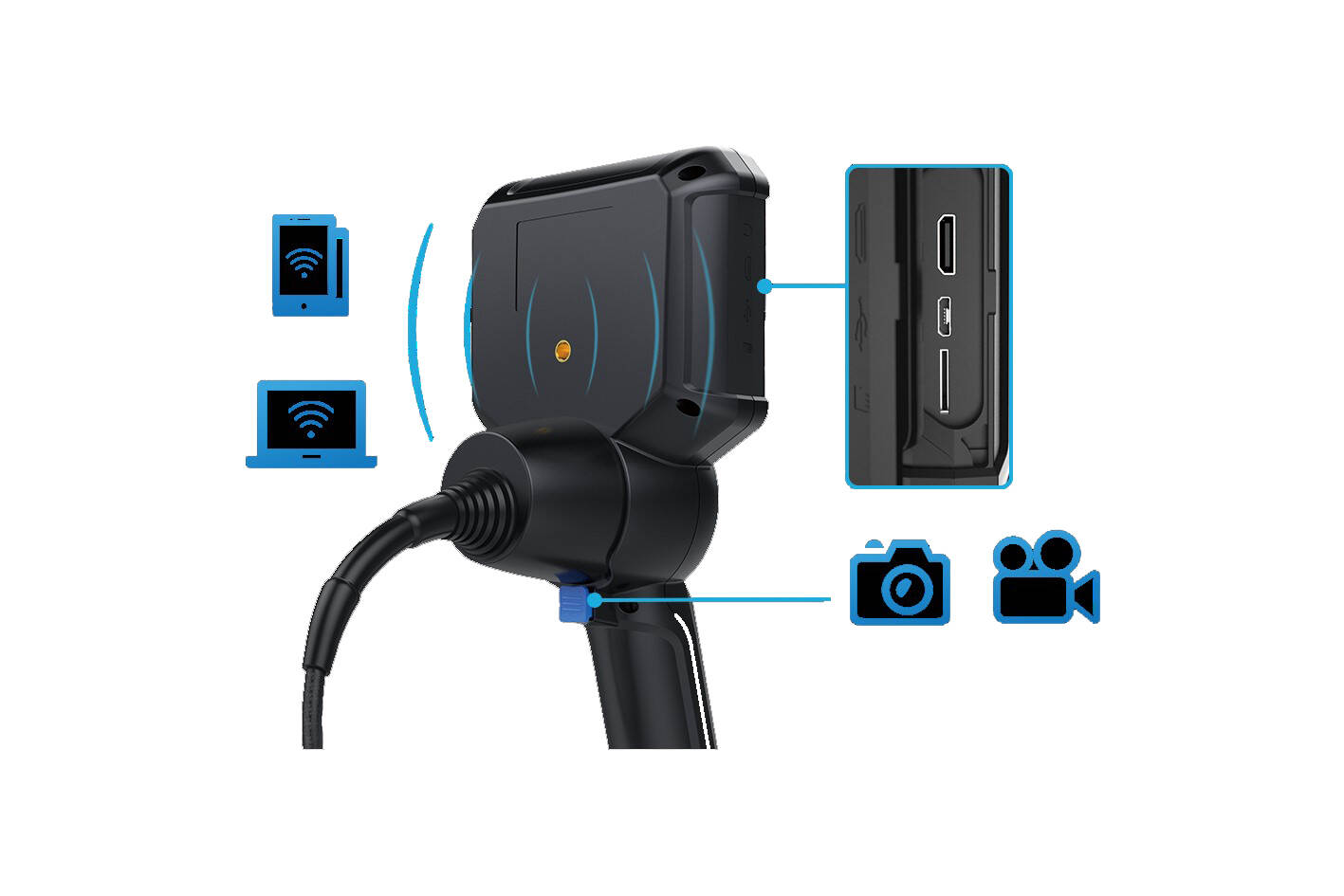

       Sapphire Glass Lens & Over-heat Protection                                         One-click photo/ video taking, real-time wireless image transmitting

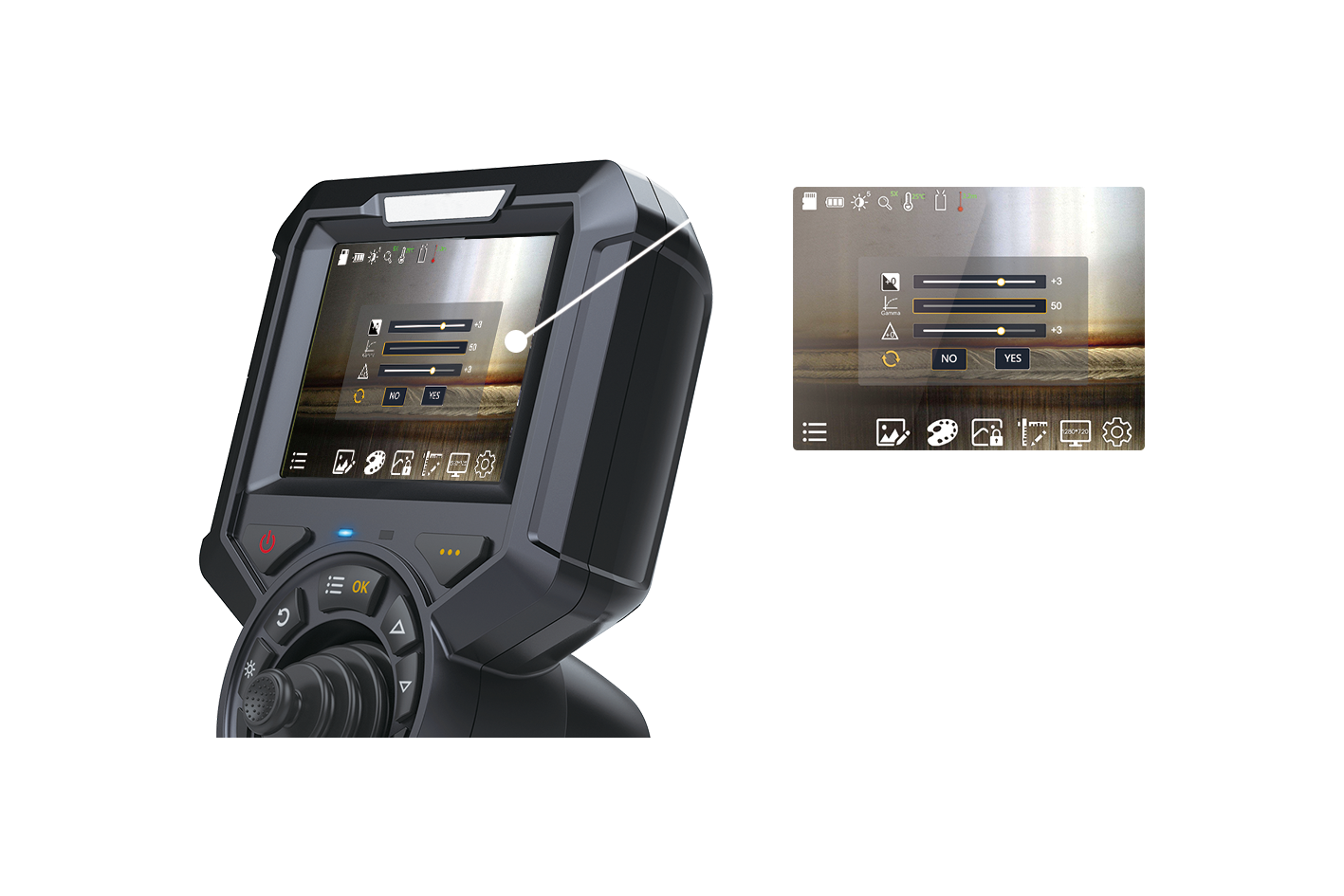

     Intelligent image-process system simple operating logic                                                 Light and protable only 0.5KG
                       Iconic menu, easy operation

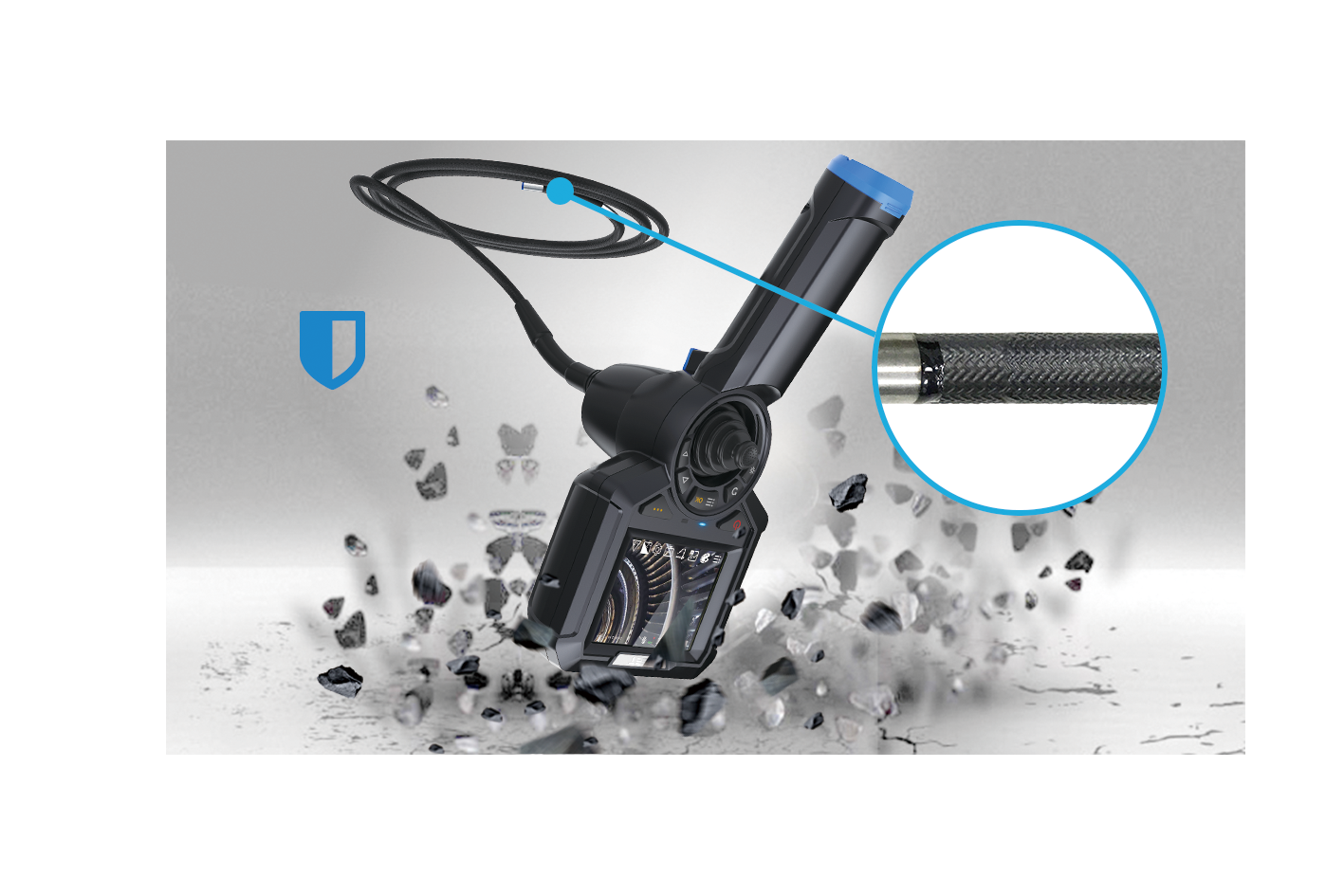

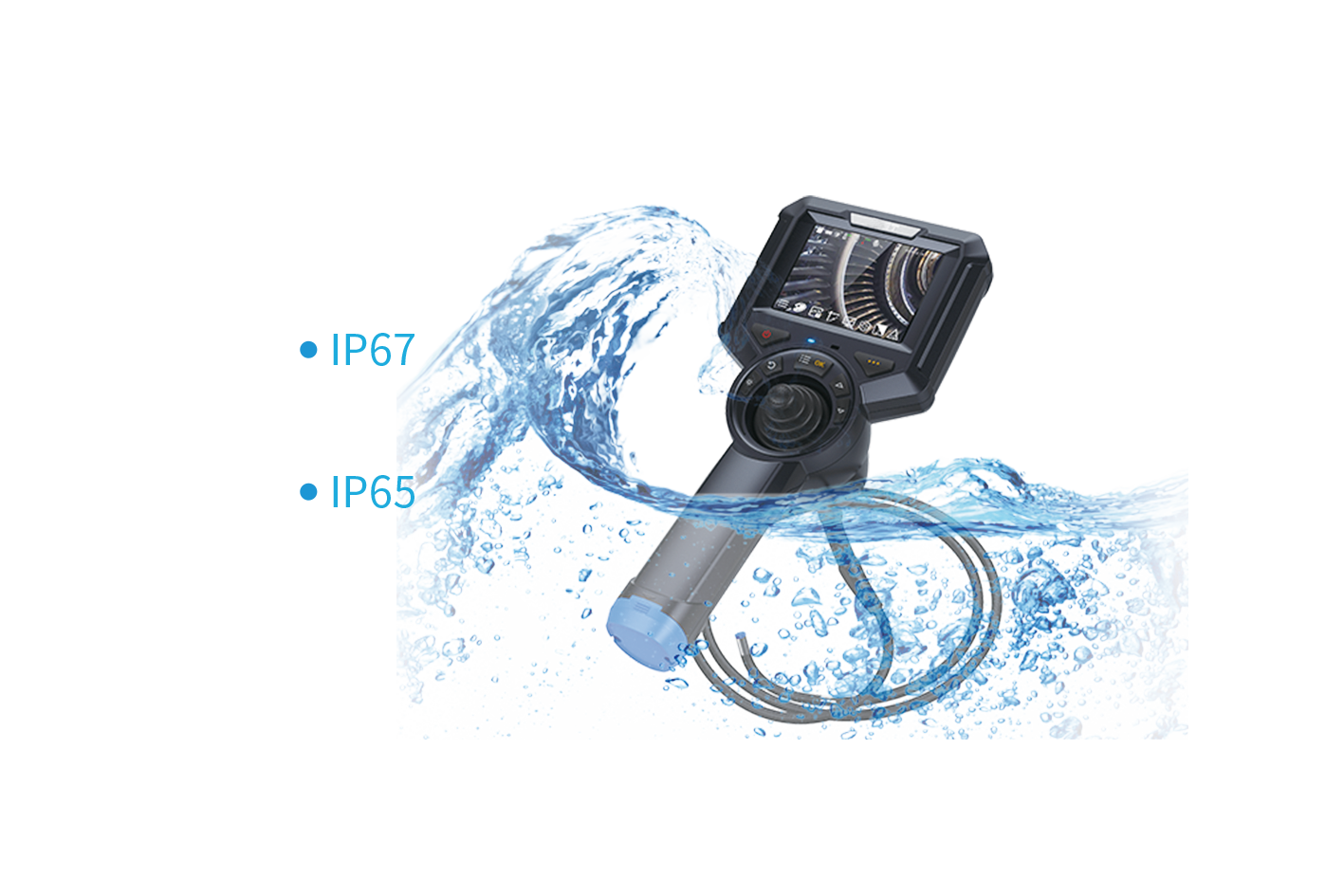

               The whole product is dust-proof and water-proof                                      Anti-fall engineering alloy materials & Tungsten-alloy braided tube
                                                                                                                                     Excellent quality, anti-fall and wear-resistant



                    One battery ≥ 3H, super long working time                                                                            Optional Accessories




Technical Specification:

Tool Videoscope

Model

VT350-60-100

VT350-60-150

Code#

350-60-100T

350-60-150T



Probe

System

Tube Length

1m

1.5m

Probe Diameter(mm)

Φ6.0

Tube Material

tungsten alloy

Camera Pixels

1 mega pixel

Image Resolution

1280*720

DOF

7~110mm/20-150mm

FOV

120°

Light Source Material

Ceramic LED light

Illumination Level

6-Class: 0~5

Illuminance

25000Lx



Protecting Device of Durability

80mm buffer protection device on the connection between tube and handle

Articulation

360° joystick-control articulation

Bending Angle

Maximum: 220°

Display

Monitor

System

Structure

Hand-held integrated design

Display

3.5 inches IPS full-view display

Zoom In/Out

5X

Image Effect

Image freezing, cold/warm color

Image Adjustment

Image sharpness/ contrast/gamma value

Image/Video Format

JPEG/MP4

File Storage

Standard TF card: 16G, Maximum: 64G

Data Port

HDMI video output, Micro USB port

Wireless Image Transmission

WIFI（optional）

Battery

Detachable & rechargeable lithium battery

Battery Capacity

3.7V，3200mAh

Battery Working Time

≥3H

Battery Charge

DC 5V/1A

Outer Case Material

Anti-fall engineering alloy material

Water/Dust Proof

Probe/tube: IP67; monitor: IP65

Weight

≈0.5KG

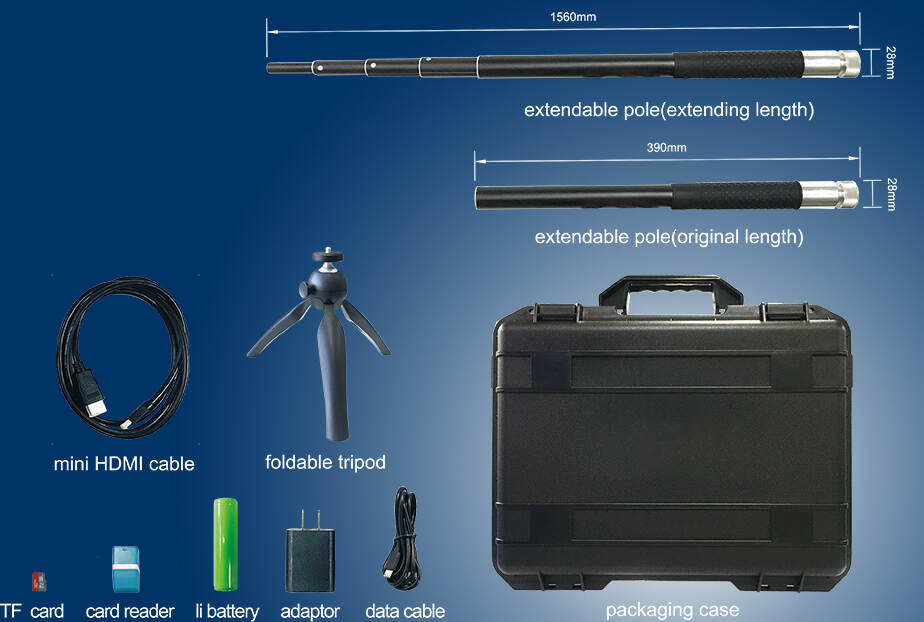

Accessories

Standard Configuration

Instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual

Optional

Extendable pole: 0.35-1.8m/mini HDMI cable/ foldable tripod
