VH-510 Videoscope

• INTELLIGENT SOFTWARE

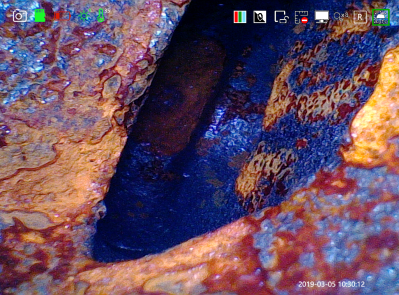

1. Strong intelligent image processing system: with the functions of mage rotation, white balance, exposure control, negative film and zoom in & out, comparative measurement, it can meet all kinds of complicated inspection needs.
2. White Balance: Auto white balance with strong color reduction; manual-control white balance according to inspection needs.

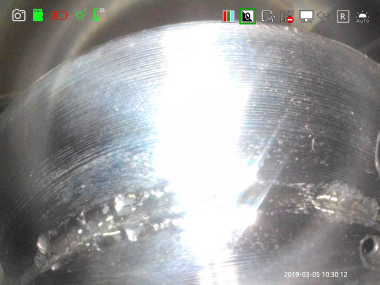

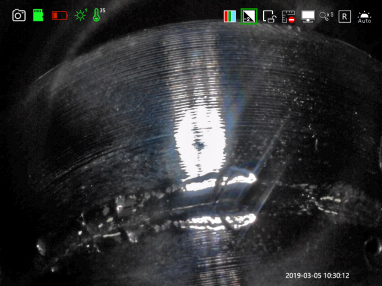

3. Exposure Setting: exposure suppression--the polished object is also inspected clearly; exposure compensation--when checking large cavity, it can be more effective and clearer.
4. Normal Mode: HD image effect.

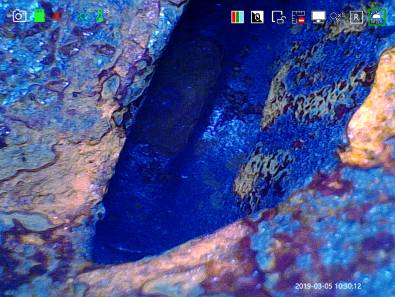

5. Negative Film Mode: Enhance the ability to compare and analyze the internal defects of the inspected objects.
6. Support: 8X zoom in/out.

• FLEXIBLE ARTICULATION CONTROL

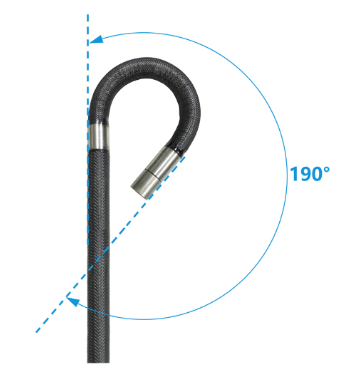

360°joystick-control articulation, damping type positioning design, precise probe locking technology, make the detection more accurate and efficient. Independently developed technology of long-distance transmission ensures bending angle ≥100°, even the tube reaches 10 meters.

• STRONG HARDWARE

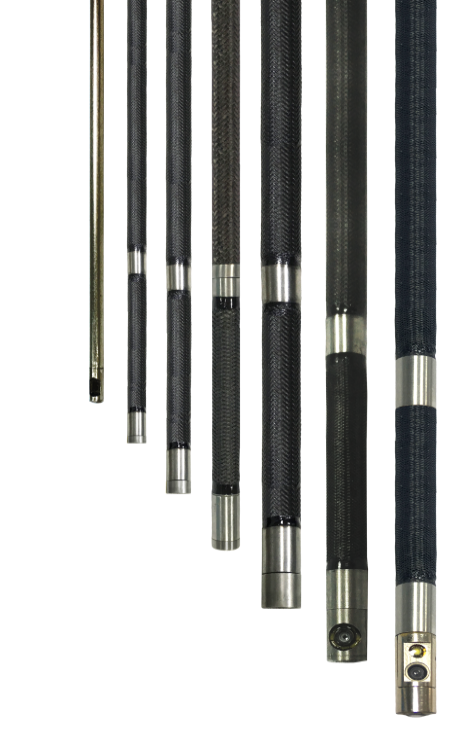

VH510 series videoscope is module designed. Configured with 5.1 inches HD display, it can be interchangeable with 3.5 inches small display, suitable for different inspection requirements. The monitor and probe can be separated by one button. It is compatible with different diameter tubes like: 2.0mm/2.2mm/2.8mm/3.8mm/6mm, as well as 3.8mm&6mm sideview tubes and 6mm dual lens tube.

1. Monitor and tube can be separated by one button.
2. High temperature alarm function: Orange alarm when the temperature is above 65 ℃; Red alarm and shutdown when the temperature is more than 80 ℃.
3. The image can be outputted to HD display by HDMI.
4. Original dual battery design,8 hours working time; real-time battery indication.

• QUALITY ASSURANCE

All products are complied with RoHS, CE and ISO standard and passed testing for temperature，waterproof，drop，vibration and pressure. We devote ourselves to providing high-quality professional inspection instrument to every customer.

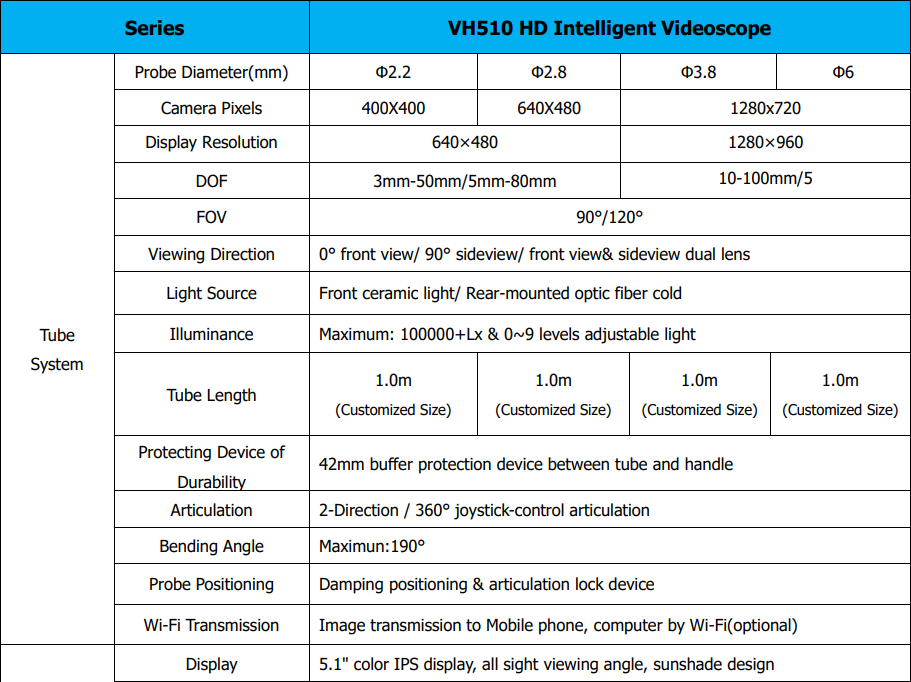

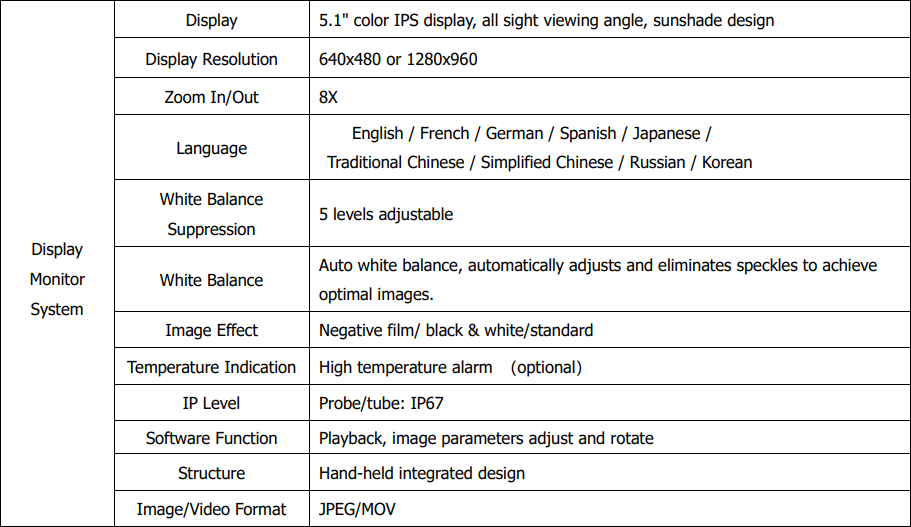

• Technical Specification
•
