VA-350 Videoscope

Quick Details
Product Code：
VA350-60-150/ VA350-60-200
OEM：
Available
Sample:
Available
Port:
Shenzhen
Payment:
T/T,L/C,PayPal
Place of Origin：
China
Supply Ability：
50 piece per week
Quick Details
  • Camera Pixels
    1MPiexel(1280x720)
  • Light Source
    LED (Optional Optic Fiber)
  • Tube Diameter Kind
    Optional Tube Diameter
  • Working Time
    ≥8h Continuous
  • Articulation
    360° Joystick Control
  • Display
    3.5 Inches TFT LCD
  • Language
    English / French / German / Italian / Spanish / Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Russian / Ukrainian / Korean
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

  • INTELLIGENT MONITOR SYSTEM

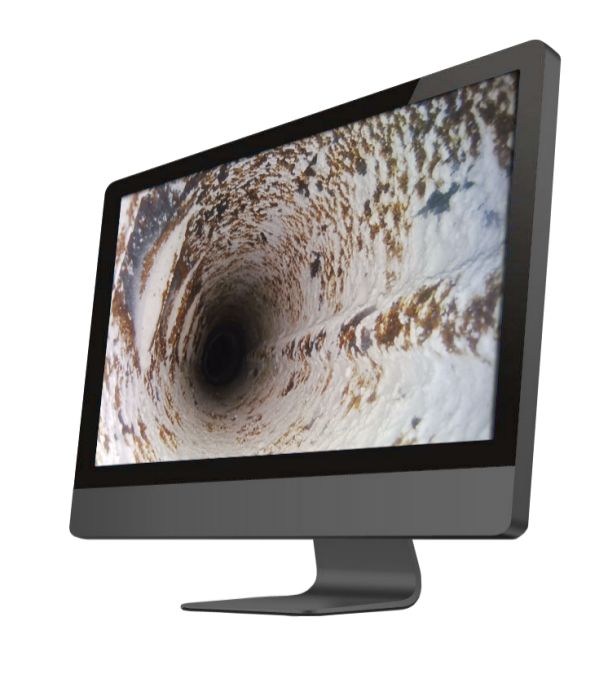

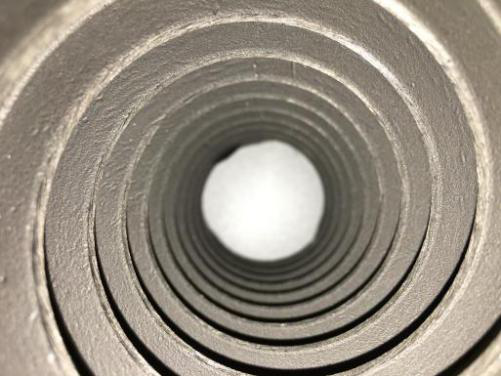

High Definition                                                        Output

Photo/Video 720P; 1,000,000 pixels.                                              The image can be outputted to HD

HD video recording available. (Display by HDMI)

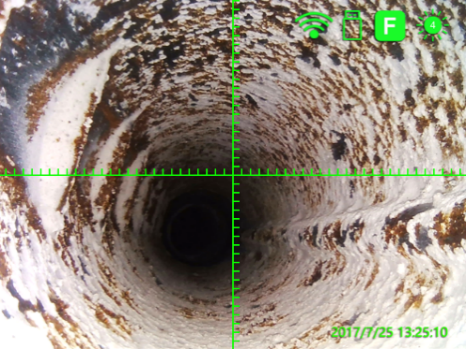

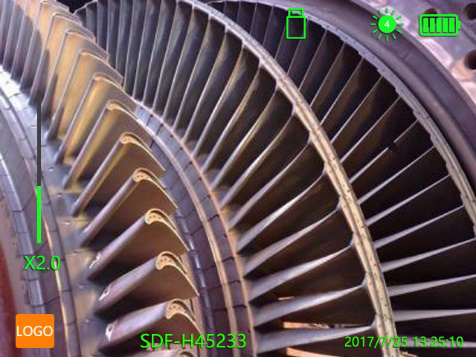

Real-Time Zooming                                                Scale

In preview mode, it supports real-time zooming, and                       Defect size measurement and comparison, coordinate display, available for review, more

the defect inspection is more intuitive.                                            accurate auxiliary judgement for defect detection auxiliary judgement.






  • MULTIFUNCTIONAL TUBE SYSTEM

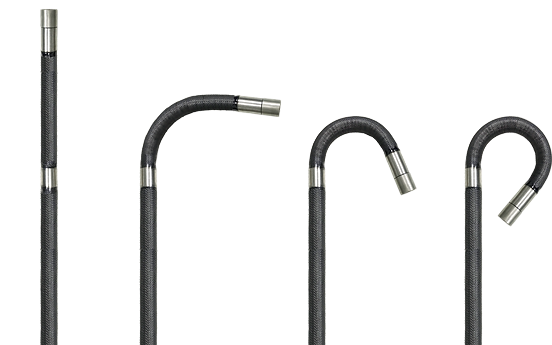

Articulation

360 ° all-way articulation, damping type positioning design and precise probe locking technology makes the detection more accurate and efficient.




Wear Resistant Tube                                              Working Time

5 layers of tungsten- braided tube; Wear resistance:                             Original dual battery design, 8 hours working time, real-time battery indication.

20 times better than ordinary probe.

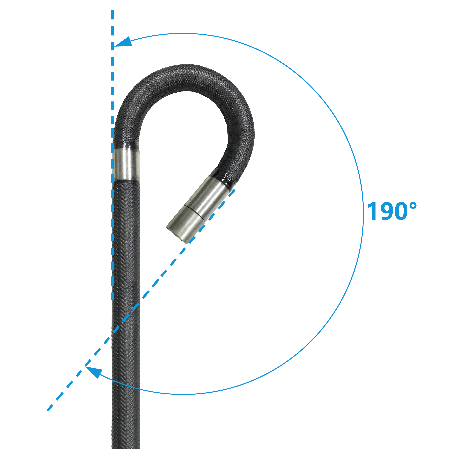

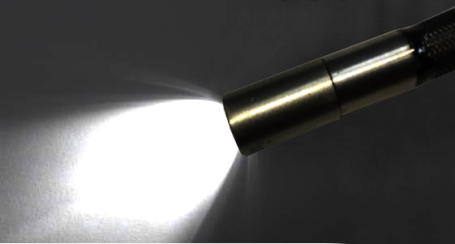

Bending                                                                    Illuminance

The maximum bending angle is up to 190°                                     With super bright ceramic LED, the illuminance can reach to 1,000,000 Lx.

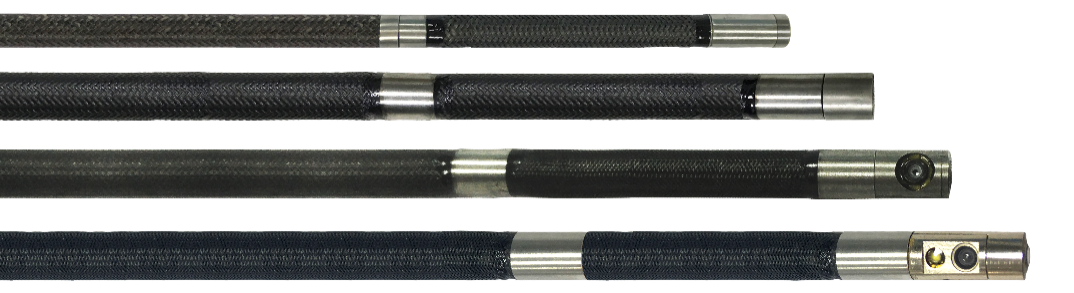

Interchangeable Tube

Compatible with 3.8mm and 6mm diameter tubes.

· 3.9mm 360° articulation

· 6mm front view 360° articulation

· 6mm sideview 360° articulation

· 6mm front view & sideview dual lens

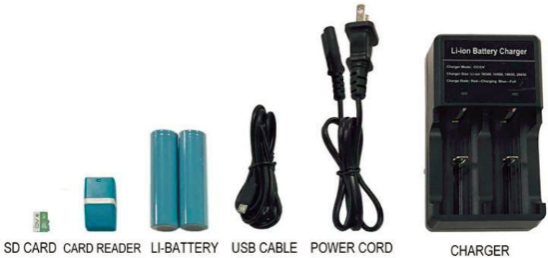

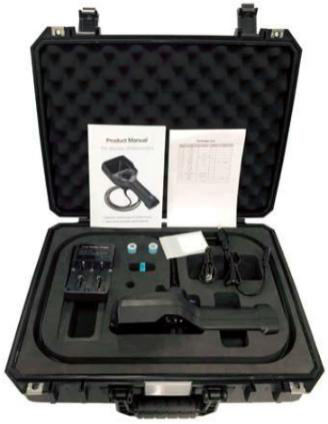

Packaging & Accessories








Quality Assurance

All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.



Technical Specification:

Series

VA350 Videoscope



Probe System

Probe Diameter(mm)

Φ3.9mm

Φ6.0mm

Camera Pixels

1MPiexel(1280x720)

DOF

5-80mm//10-100mm/50mm-∞

FOV

120°

Light Source

LED (optional: optic fiber)

Illuminance

It can be up to 20,000 Lx

It can be up to 100,000 Lx

Tube Length

1.0Meter

(Customized: 2/3/4/5 Meter)

1.5Meter

(Customized: 2/3/4/5/6/7/8Meter)

Protecting Device of

42mm buffer protection device between tube and handle

Articulation

360° joystick control

Bending Angle

Maximun:190°（8m tube:100°）

Probe Positioning

Damping positioning (optional: articulation lock device)

Display

Monitor

System

Display

3.5 inches TFT LCD

Image Resolution

1280×720

Language

English / French / German / Italian / Spanish / Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Russian / Ukrainian / Korean /Polish / Latvian

Outer Case Material

Anti-fall engineering alloy material

IP Level

Probe/tube: IP67

Temperature Indication

High temperature alarm(optional）

Structure

Hand-held integrated design

Image/Video Format

JPEG/MOV

Data Port

HDMI video output, Micro USB port

Working Time

≥8h

Zoom In/Out

4X

Battery Capacity

3.7V，3200mAh×2

Power Charge

DC5V，maximum current: 1A

Weight

0.55Kg-0.8Kg

Compatibility

Interchangeable monitor and tube with different diameters

Accessories

Storage

Standard TF card: 16G, Maximum: 32G

Power Supply

Detachable lithium batteries

Standard Configuration

Instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual
