Pocket G-Type Leeb Hardness Tester

Buy Now
Add To Cart
Contact Supplier
Choose your specifcations
$ 1589.00
Please select specification
Model:
MH-500G
Quantity:
Quick Details
Product Code：
852-156G
OEM：
Available
Sample:
Available
Port:
Shenzhen
Payment:
PayPal,L/C,T/T
Place of Origin：
China
Supply Ability：
50 piece per week
Quick Details
OK
Shipping fee
Shipping fee

Introduction:

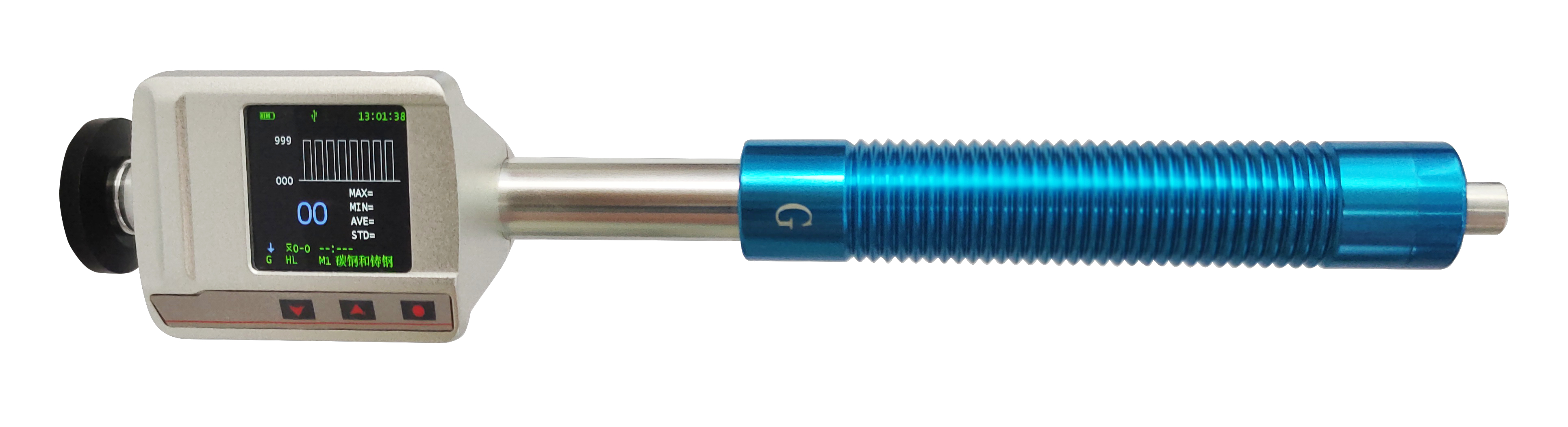

MH-500G is an advanced state-of-the-art palm sized metal hardness tester with many new features. It still used our dual-coil technology which makes MH-500G to have extraordinary accuracy: +/-2 HL (or 0.3% @HL800) with high contrast colour TFT display and durable metal housing. Equipped with impact device G. It has a moving bar-graph display which can evaluate the workpiece upon deviation value by different colour for easy visual distinguish. MH-500G can download measuring data to PC and printout to micro-printer by USB port and wirelessly with internal wireless module. The battery can be charged simply from USB port, also it has a customer re-calibration and statistics function.


Features:

  • Integrated design , easy operation
  • Durable metal housing
  • TFT320X320 colour display
  • Diamond ball tip
  • Wide operating environment: -20oC-70oC
  • High accuracy: +/-4 HL (or 0.3% @HL800)
  • Auto compensate error for different impact direction
  • Moving bar-graph display
  • Two evaluation modes: By Limit / Deviation
  • Two calibration modes: Coincident / Independent
  • Multi-printing mode
  • Four display styles
  • Sound reminder
  • Up to 10 kinds of menu language
  • Date and time function
  • It can connect to computer by USB or Bluetooth
  • USB and Bluetooth inter face, it can connect micro-printer wirelessly
  • 3.7 V Li-ion rechargeable battery, it can be charged by USB or power source
  • Statistics value can be calculated automatically
  • With strength conversion value
  • Power on/off automatically or manually


Specification:

Product Name

Pocket G-Type Leeb Hardness Tester

Model

MH-500G

Code#

852-156G

Principle

Leeb hardness measurement

Accuracy / Repeatability

±0.3% @ HL=800 / ±4HL

Display

High contrast color TFT 320 x 320

Hardness Scale

HLD/HRC/HRB/HB/HV/HSD/HRA/σb

Measuring Range

HL100~960 / HRC0.6~78 / HRB3~140 / HB24~1140 / HV24~1360/ HS3~120 / HRA1~88 /σb (rm)24~3800N/mm²

Probe

G

Memory

30 files, 100 data for each file, can be saved and re-readable

Statistics Function

Average / Max. / Min. / S. value

Re-calibration

Coincident / Independent

Indicator

Low battery

Language

English, Chinese

Interface

USB/Blue tooth to PC for transferring data, wireless printing, USB for charging

Power on/off

Auto / Manual

Power Supply

3.7V Li-ion rechargeable battery

Working Environment

-20~+70°C

Dimension (mm)

253x47x34(mm)

Net weight (g)

275g

Standards

Conforming to ASTM A956, DIN 50156, GB/T 17394-1998



Standard Delivery:

  • Main unit 1
  • Internal probe E 1
  • Test block D 1
  • Small support ring 1
  • Cleaning brush 1
  • 3.7 V Li-ion rechargeable battery (internal) 1
  • Bluetooth module (internal) 1
  • Charger 1
  • USB cable 1
  • Data managing software 1
  • Operation manual 1
  • Test Certificate 1
  • Carrying case 1



Optional Accessory:

  • Bluetooth micro printer (powered by rechargeable battery)
  • Special support rings
  • Standard support ring for probe D
  • Small support ring
  • Impact body E
  • Test block D with certificate
  • Test block D w/o certificate
  • European adapter plug
