Pocket E-Type Leeb Hardness Tester

Introduction:

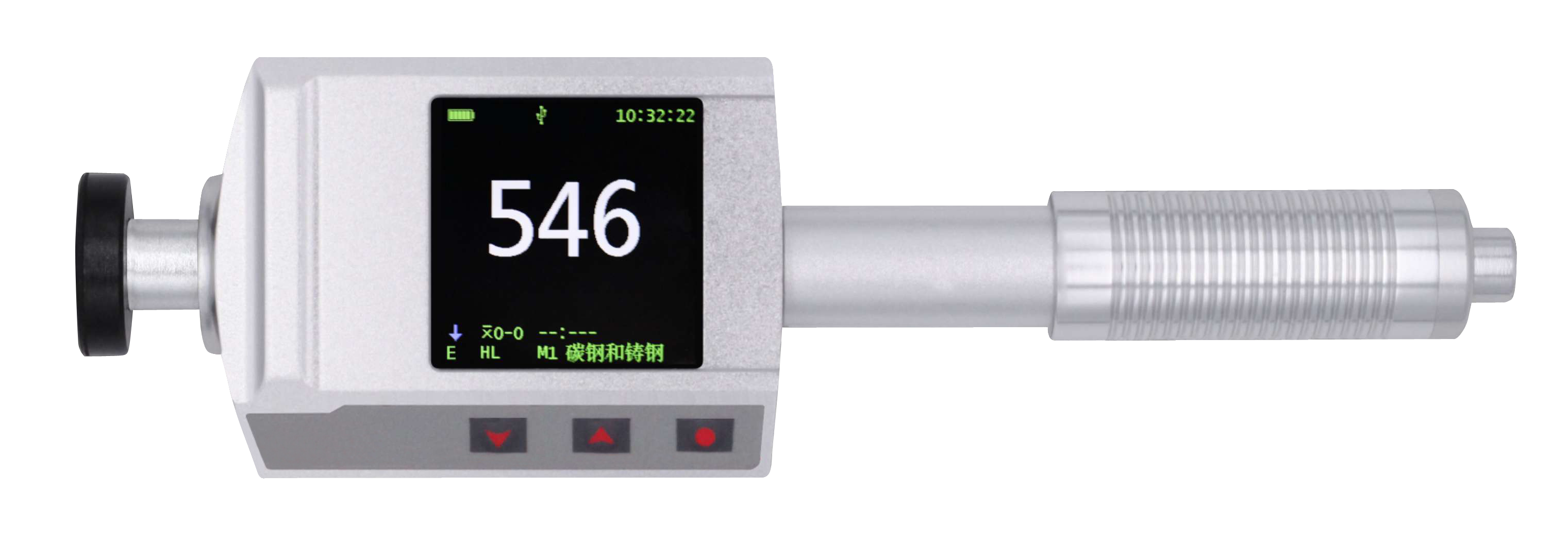

MH-500E is an advanced state-of-the-art palm sized metal hardness tester with many new features. It still used our dual-coil technology which makes MH-500E to have extraordinary accuracy: +/-2 HL (or 0.3% @HL800) with high contrast colour TFT display and durable metal housing. Equipped with impact device E (diamond ball tip), MH-500E is especially suitable for the hardness material after heat treatment or the situation requiring a large number of tests. It has a moving bar-graph display which can evaluate the workpiece upon deviation value by different colour for easy visual distinguish. MH-500E can download measuring data to PC and printout to micro-printer by USB port and wirelessly with internal wireless module. The battery can be charged simply from USB port, also it has a customer re-calibration and statistics function.

Features:

• Integrated design, easy operation
• Durable metal housing
• TFT320X320 colour display
• Diamond ball tip
• Wide operating environment: -20oC-70oC
• High accuracy: +/-4 HL (or 0.3% @HL800)
• Auto compensate error for different impact direction
• Moving bar-graph display
• Two evaluation modes: By Limit / Deviation
• Two calibration modes: Coincident / Independent
• Multi-printing mode
• Four display styles
• Sound reminder
• Up to 10 kinds of menu language
• Date and time function
• It can connect to computer by USB or Bluetooth
• USB and Bluetooth inter face, it can connect micro-printer wirelessly
• 3.7 V Li-ion rechargeable battery, it can be charged by USB or power source
• Statistics value can be calculated automatically
• With strength conversion value
• Power on/off automatically or manually

Specification:

Standard Delivery:

• Main unit 1
• Internal probe E 1
• Test block D 1
• Small support ring 1
• Cleaning brush 1
• 3.7 V Li-ion rechargeable battery (internal) 1
• Bluetooth module (internal) 1
• Charger 1
• USB cable 1
• Data managing software 1
• Operation manual 1
• Test Certificate 1
• Carrying case 1

Optional Accessory:

• Bluetooth micro printer (powered by rechargeable battery)
• Special support rings
• Standard support ring for probe D
• Small support ring
• Impact body E
• Test block D with certificate
• Test block D w/o certificate
• European adapter plug
