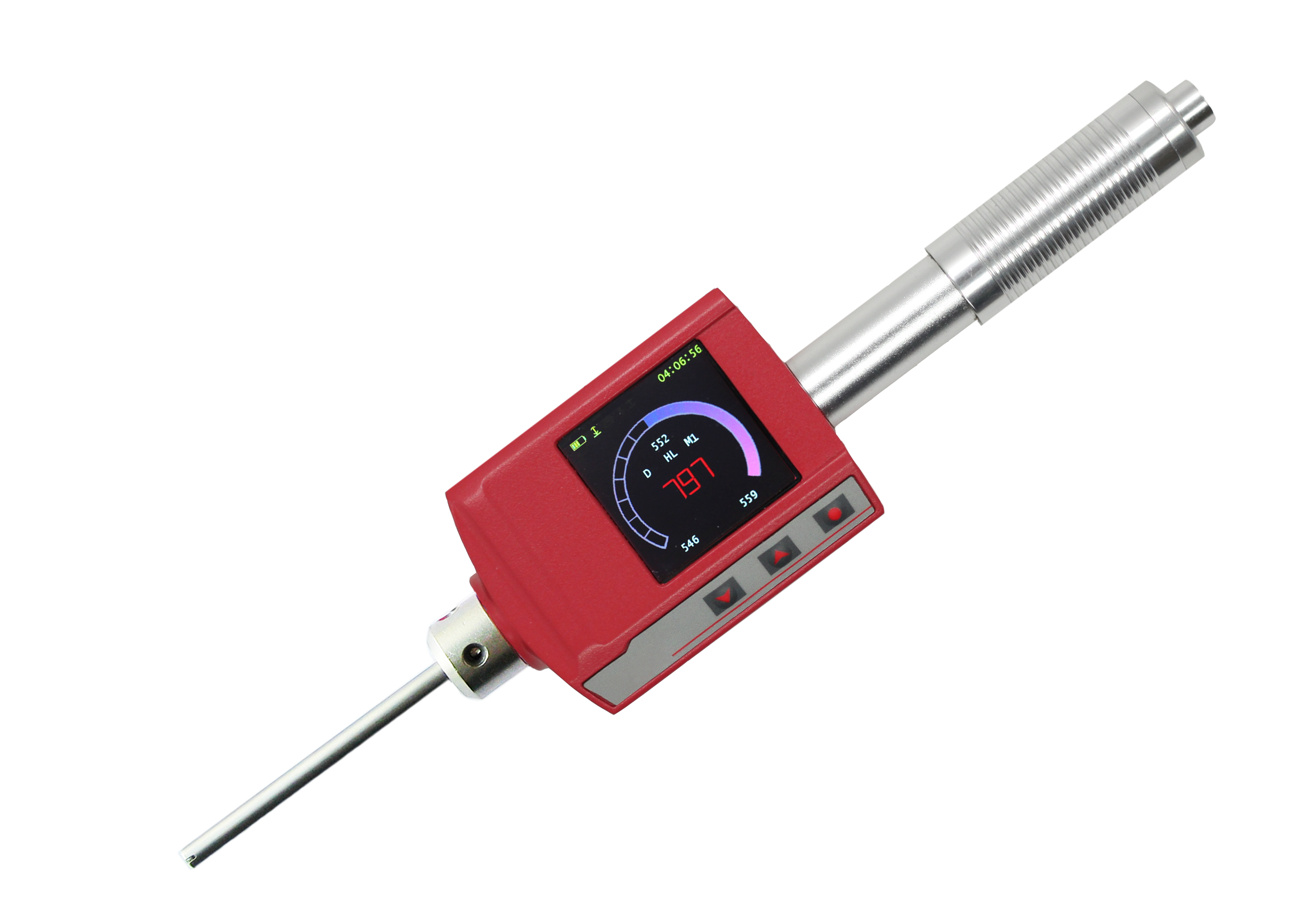

Pocket DL Leeb Hardness Tester

Introduction:

lNew Leeb hardness tester MH-500DL with durable metal housing.

lIt still used the patent dual-coil technology which makes it to have extraordinary accuracy: +/-4HL with high contrast color TFT display and durable

metal housing.

lIt has a moving bar-graph display which can evaluate the workpiece upon deviation value by different color for easy visual distinguish.

lIt can download measuring data to PC and printout to micro-printer by USB port and wirelessly with internal wireless module.

lThe battery can be charged simply from USB port, also it has a customer re-calibration and statistics function.

Features:

lIntegrated design, easy operation                                                    lFour display styles

lDurable metal housing                                                                    lMulti-printing mode

lTFT320*320 color display                                                                lSound reminder

lWide operation environment: -20ºC-70ºC                                         lUp to 10 kinds of menu language

lHigh accuracy: +/-4HL (or 0.5% @HLD800)                                      lDL probe

lAuto compensate error for different impact direction                           lIt can connect to computer by USB or Bluetooth

lMoving bar-graph display                                                                 lUSB and Bluetooth interface, it can connect micro-printer wirelessly

lTwo evaluation modes: By limit / Deviation                                        l3.7 V Li-ion rechargeable battery, it can be charged by USB or power source

lTwo Calibration modes: Coincident / Independent                              lStatistics value can be calculated automatically

lWith strength conversion value                                                         lPower on / off automatically or manually

lPacked in rigid carrying case

Specifications:
