PIN IMPACT BRINELL HARDNESS TESTER PHB-1

≥1/piece
$905.00
Quick Details
Product Code：
832-143
OEM：
Available
Sample:
Available
Port:
Shenzhen
Payment:
PayPal,L/C,T/T
Place of Origin：
China
Supply Ability：
50 piece per day
Quick Details
OK
Shipping fee
Shipping fee
Inquiry Basket
Contact Supplier

Characteristics:

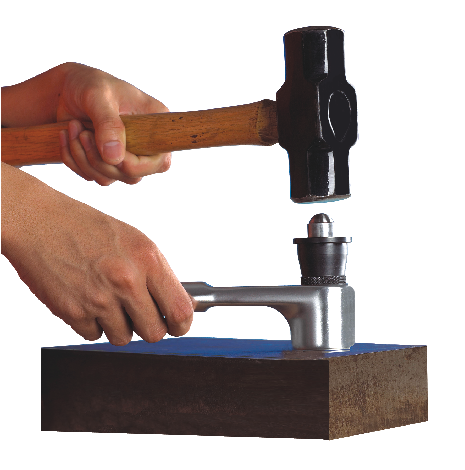

PHB-1 is a PIN IMPACT BRINELL HARDNESS TESTER. It applies Brinell hardness test method, loading test force by hammer impacting, force controlled by shear pin precisely. Accurate test force leads to a good result consistency. Its test force F=1580 kgf, diameter of test ball D=7.26 mm, which leads F/D2=30. It follows Brinell similarity principle, equals to normal condition of 3,000 kgf, 10mm test ball. It Simply hits on side to test part, low requirements on the shape and size of test piece. Only consume 1 piece of cheap shear pin for each test. Reliability, repeatability and accuracy are higher than Leeb hardness testers.


Technical Specifications:

Commodity

PIN IMPACT BRINELL HARDNESS TESTER

Model

PHB-1

Code#



Testing Force

1,580 kgf

Indenter

test range 100~350 HBW: 7.26 mm Steel Sphere Indenter

test range 350~650 HBW: 4 mm Hard Alloy Sphere Indenter

Testing Range

100–650 HBW

Indicator Error

≤5%

Repeatability Error

≤5%

Net Weight

  0.8 kg



Standard Delivery:

Commodity

Code#

Commodity

Code#

Commodity

Code#

Instrument Main Body



Pin(250pieces/box)



Pin Cleaner



Hardness Block HBW/3000/10

832-603

Handle



Housing



Hardness Block HBW/750/05

832-613

20X Measuring Microscope



Shear Pin Housing



7.26 mm Steel Sphere Indenter



Instrument Manual

PHB-1

Qualified Certificate

PHB-1
