Gloss Meter HGZ-1

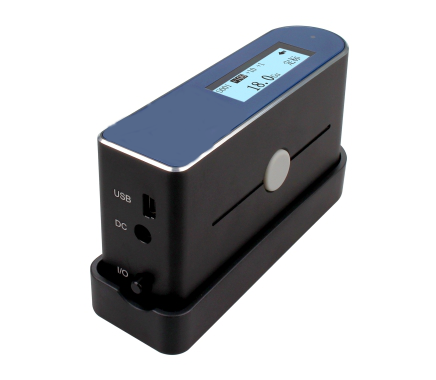

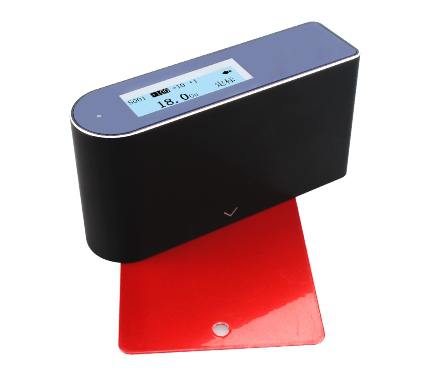

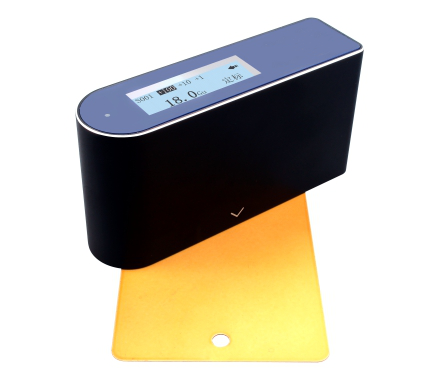

HGZ-1 Gloss Meter
Production Feature:
lThis gloss meter is designed and manufactured with the reference to the international standard ISO 2813 and China national standard GB/T9754;
lTechnical parameters are in accordance with ASTM D2457, ASTM D523 and GB/T13891, GB/T7706, GB/T8807 standard;
lAll performance indexes meet the primary working machine requirements of metrological verification procedures of national standard JJG696-2002 "mirror gloss meter and gloss board";
lApply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, paper; Other nonmetallic material.
Technical Specification:
|
Product Name |
Gloss meter |
|
Model |
HGZ-1 |
|
Measurement Range |
0-2000Gu |
|
Application |
Apply on paint, ink, stoving varnish, coating, wood products; Marble, granite, vitrified polished tile, pottery brick and porcelain; Plastic, paper; Other nonmetallic material. |
|
Instrument Dimensions |
122x34x60mm |
|
Projection Angle |
60° |
|
Measuring Spot |
（ellipse: long axis*minor axis）8mm*4mm |
|
Measuring Mode |
Automatic measurement/ manual measurement/single measurement/average measurement and cross measurement for a variety of combination measuring mode |
|
Standard Sample Setting |
Manually setting/bring out stored data for setting/manually setting tolerance |
|
Data Storage |
500 groups |
|
|
set standard sample in any stored data, user-define the tolerance range |
|
Language |
Chinese/English |
|
Output |
connect the micro printer to realize real-time output of measured data |
|
Division Value |
0.1Gu |
|
Repeatability |
0.2Gu |
|
Reproducibility |
0.4Gu |
|
Indication Error |
1.0Gu |
|
International Standard 60° |
ISO－2813、ASTM－C584、ASTM－D523、DIN－67530、ASTM－D2457、JND-A60、JND-P60 |
|
National Standard 60° |
GB 9754、GB 9966、GB 8807 |
|
Standard Accessories |
Power adapter/user manual/warranty certification/standard board |
|
Optional Accessories |
micro-printer |
