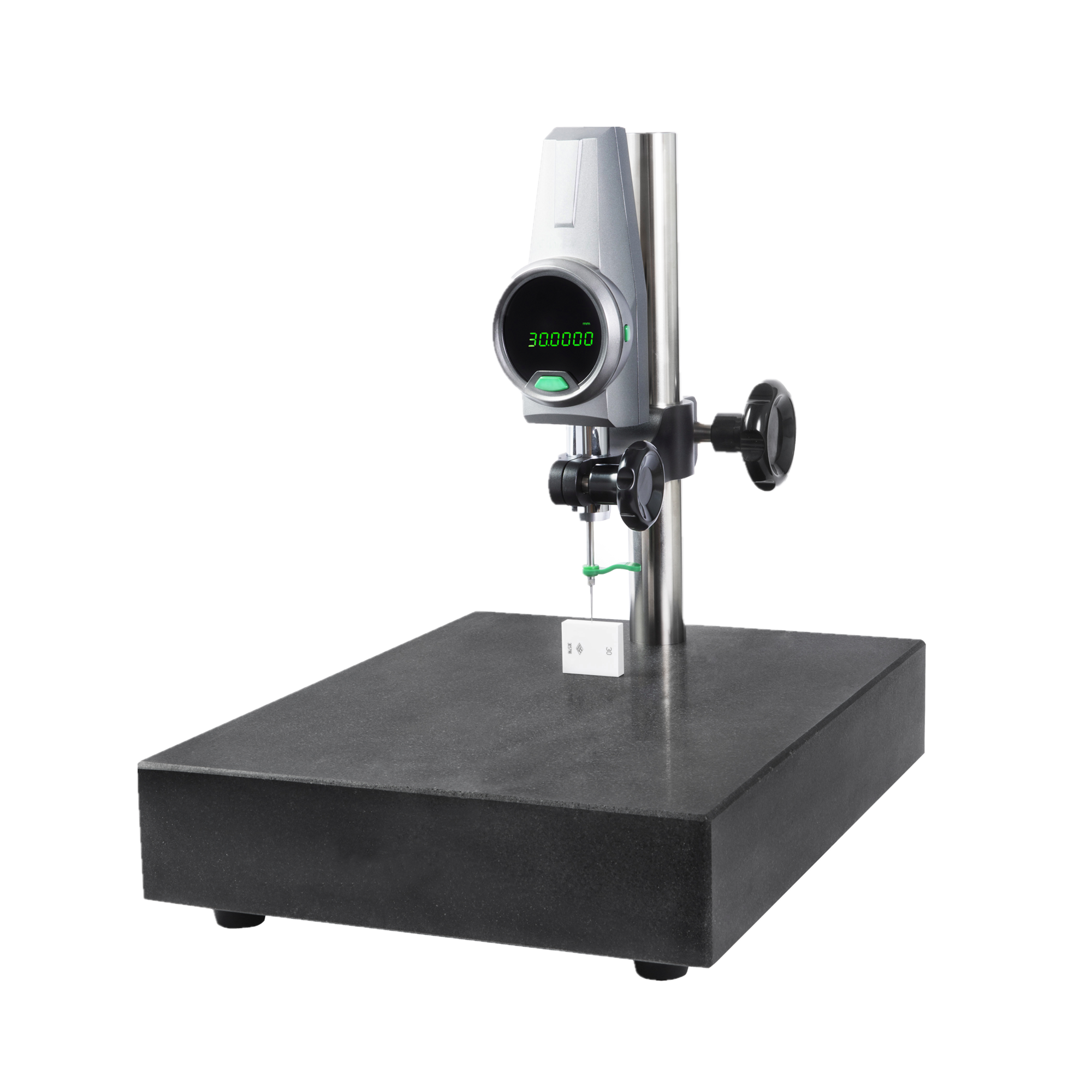

Digital Height Gauge HG50-430C/ HG100-430C
Production Feature：
- High Accuracy≤1um,High Resolution 0.01um
- Height、Depth、Thickness、Flatness Measurement
- Steps and Deep Hole Measuring
- Reset from Anywhere
- Replaceable Probe
- 8-digit highlight LED digital display device
- Wired Data Output
- Optional power bank
- High Accuracy Marble Measuring Table

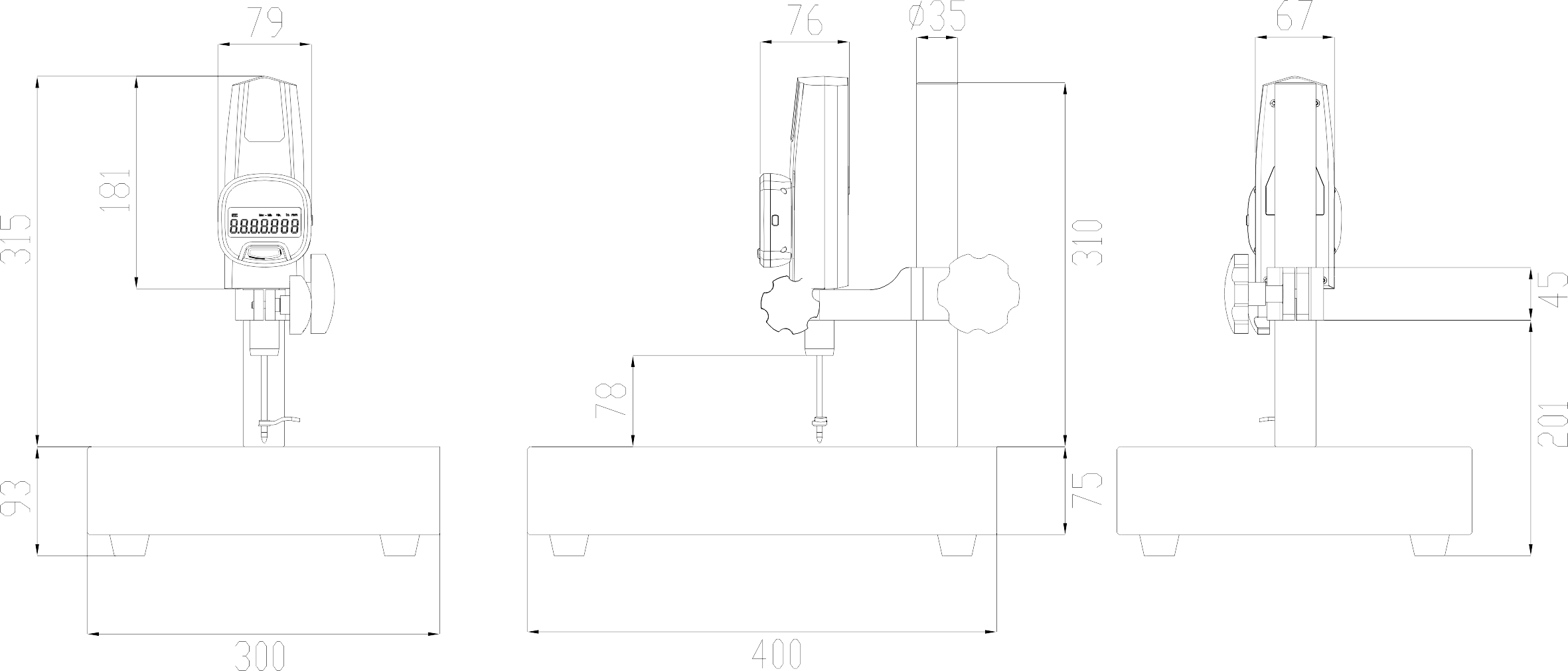

Boundary Dimension：
Technical Specification：
Commodity & Description | Digital Height Gauge | |
Mode | HG50-430C | HG100-430C |
Code# | 501-552 | 501-562 |
Measurement Range | 0-50mm | 0-100mm |
Accuracy（20℃） | ≤1um | ≤3um |
Minimum | 0.1μm、1μm(Switchable) | |
Measurement Speed | Maximum 5000mm/s | |
Force | 1.0-1.5N | |
External Output | Data Interface、USB | |
Display | 8 Bit Green High Brightness LED Display | |
Probe | Spherical Probe, Flat Probe, Needle Probe | |
Unit | mm、inch( Convertible ) | |
Operating Environment | Temperature：0-40°C Humidity：20-80% | |
Measuring Table | 400mmx300mm Marble | |
Power Adapter | Input：AC100-240V50/60HZ Output：DC5V/1A | |
Standard Accessories | Marble Table，Spherical Probe, Flat Probe, Needle Probe | |
Optional Accessories | Special-shaped Probe, Low Force Measuring Device, Data Transmission Software, Mobile Power, Foot Switch | |
Dimension | 400x300x387mm | |
