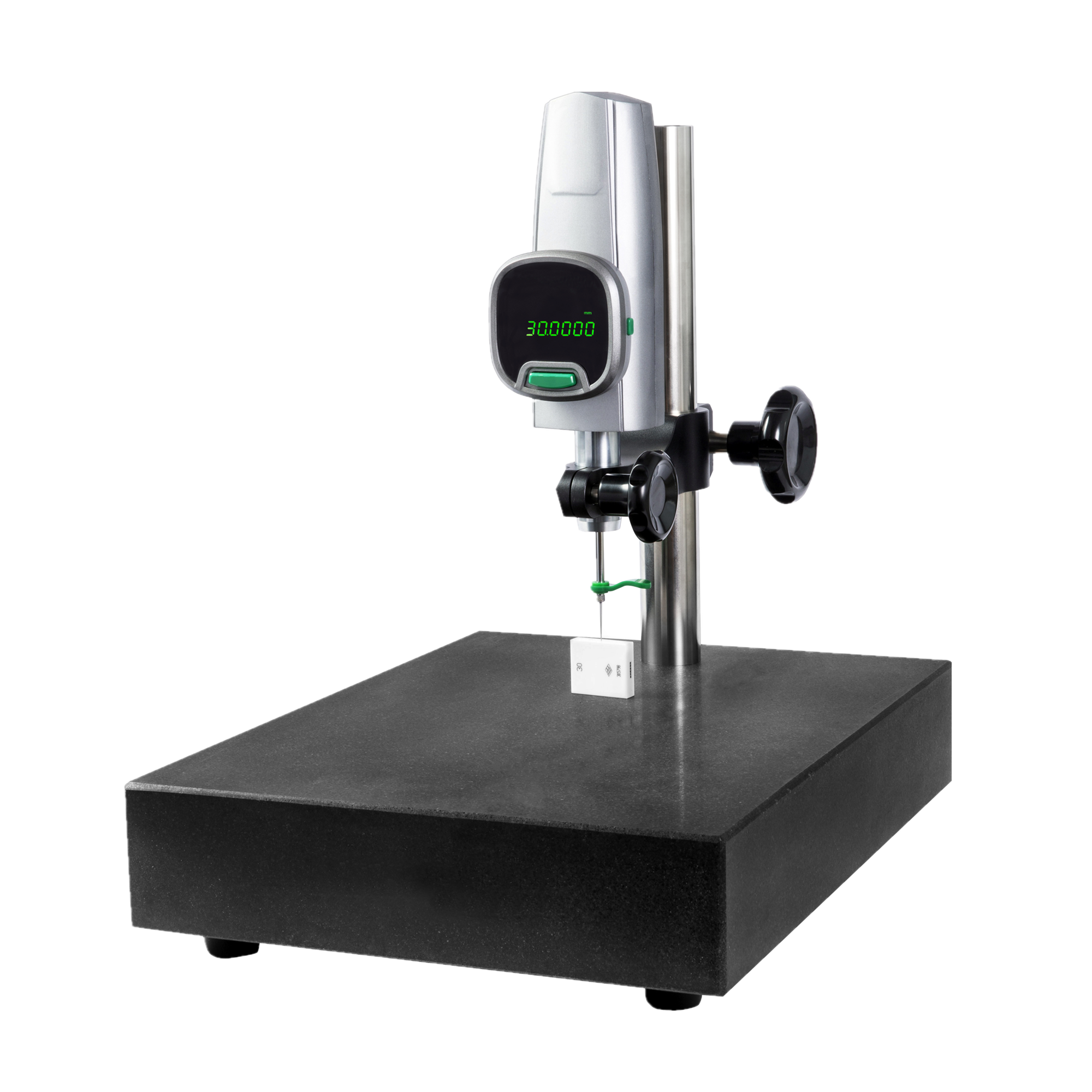

Digital Height Gauge HG50-430B
Production Feature：
- High Accuracy≤1.5um, High Resolution 0.5um
- Height, Depth, Thickness, Flatness Measurement
- Steps and Deep Hole Measuring
- Reset from Anywhere
- Replaceable Probe
- 8-digit Highlight LED Digital Display Device
- Optional Mobile Power Supply
- Stable and Hard-Wearing Cast Iron Base
- High Accuracy Ceramic Measuring Table

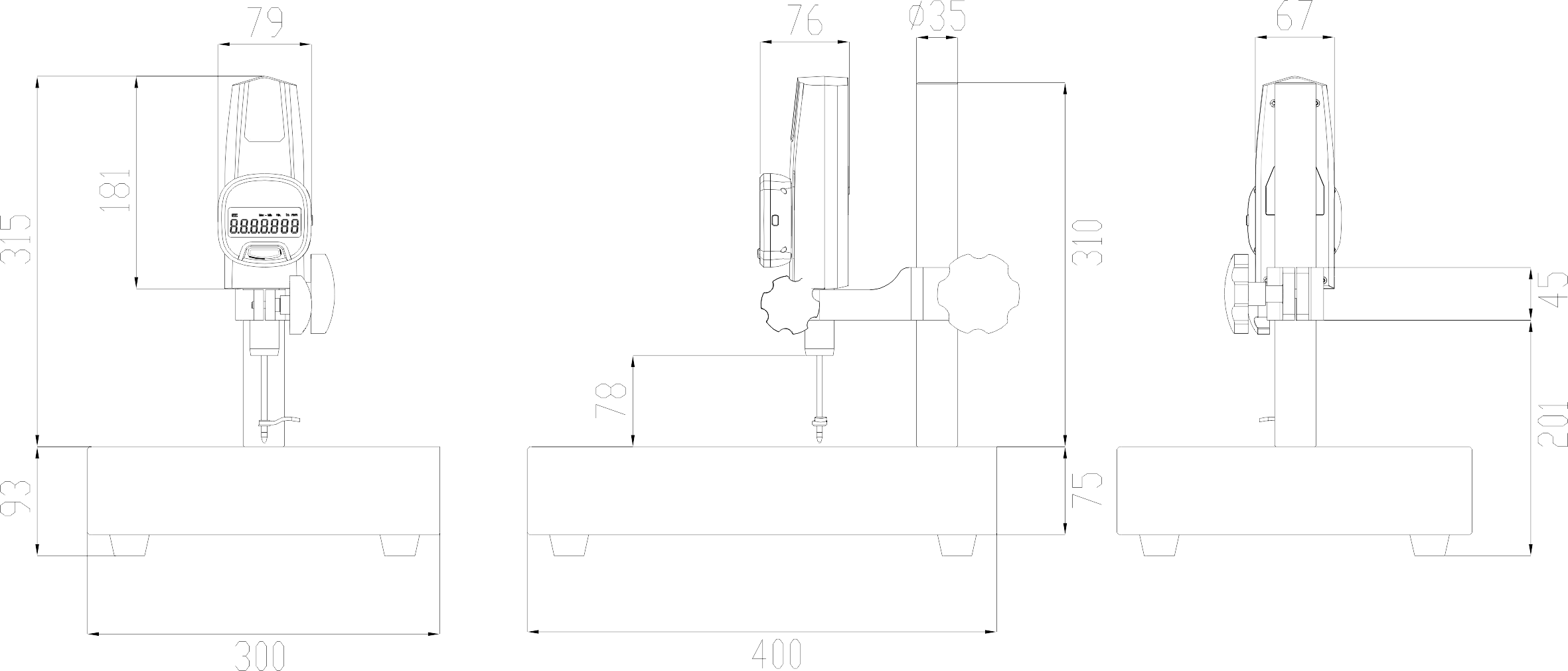

Boundary Dimension：
Technical Specification：
Commodity & Description | Digital Height Gauge |
Mode | HG50-430B |
Code# | 501-542 |
Measurement Range | 0-50mm |
Accuracy（20℃） | ≤1.5μm |
Minimum | 0.5μm、1um switchable |
Measurement Speed | Maximum 5000mm/s |
Force | 1.0-1.5N |
External Output | Data Interface、USB |
Display | 8 Bit Green High Brightness LED Display |
Probe | Spherical Probe, Flat Probe, Needle Probe |
Unit | mm、inch ( Convertible ) |
Operating Environment | Temperature：0-40°C；Humidity：20-80% |
Measuring Table | 400mmx300mm Marble |
Power Adapter | Input：AC100-240V50/60HZ Output：DC5V/1A |
Standard Accessories | Marble Table、Spherical Probe, Flat Probe, Needle Probe |
Optional Accessories | Special-shaped Probe、Mobile power supply |
Dimension | 400x300x387mm |
