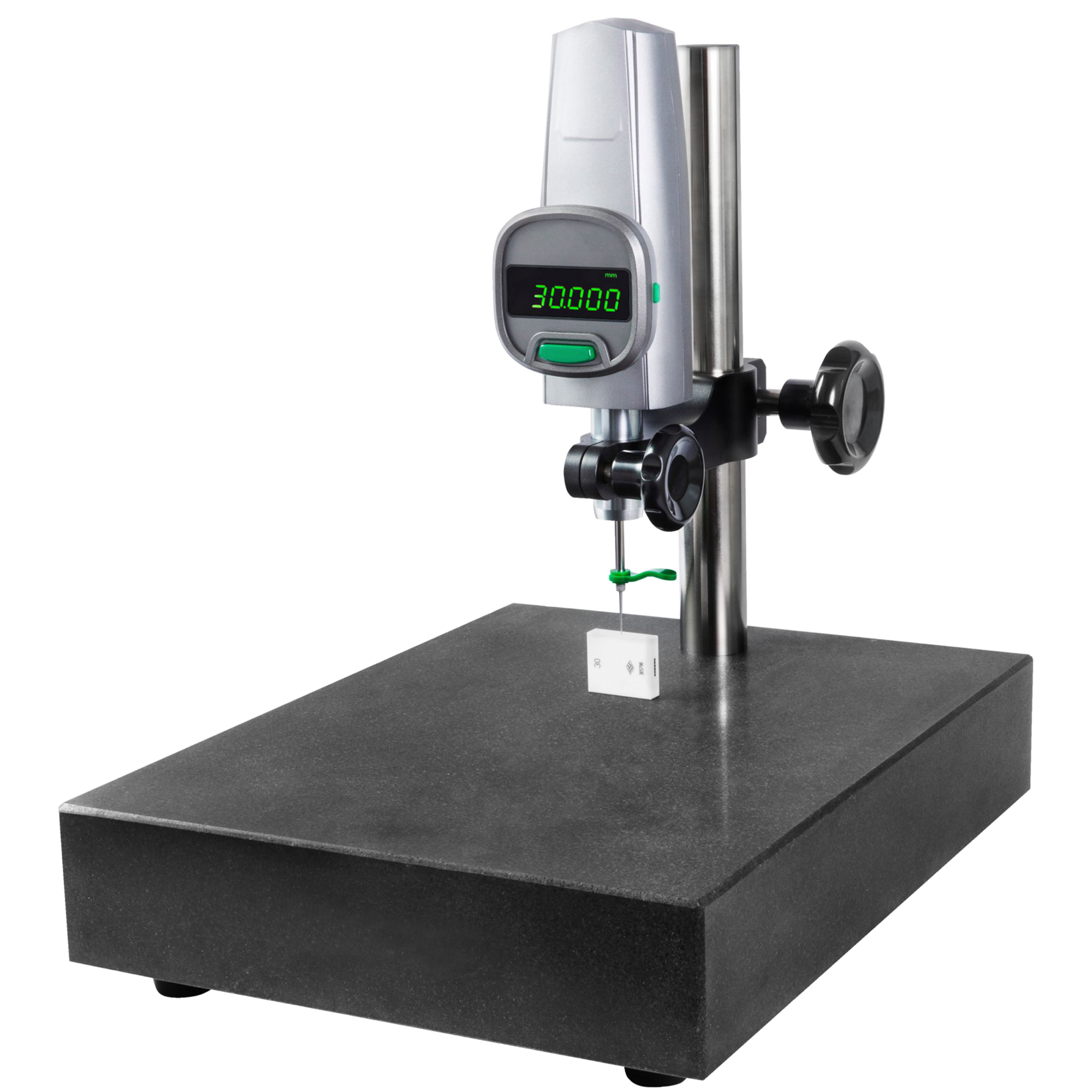

Digital Height Gauge HG50-430A
Production Feature:
- Accuracy≤3um, Resolution 1um
- Height, Depth, Thickness, Flatness Measurement
- Steps and Deep Hole Measuring
- Reset from Anywhere
- MAX, MIN, MAX-MIN Measuring
- TOL Tolerance Setting
- Built-in Rechargeable Battery (Can Last 24 Hours)
- Replaceable Probe
- 7-digit Liquid Crystal Display Device
- Wired Data Output
- Optional Mobile Power Supply
- High Accuracy Marble Measuring Table

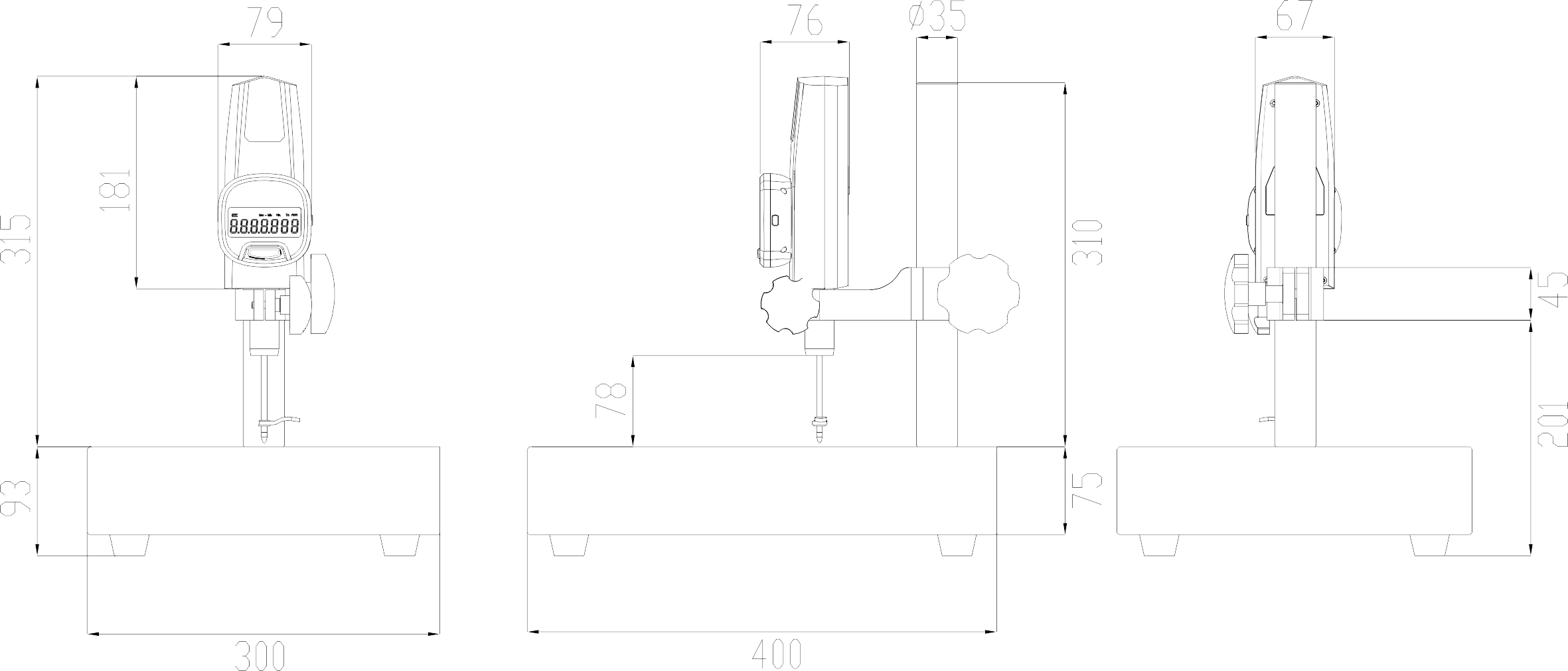

Boundary Dimension:
Technical Specification:
Commodity & Description | Digital Height Gauge |
Mode | HG50-430A |
Code# | 501-522 |
Measurement Range | 0-50mm |
Accuracy(20℃) | ≤3μm |
Minimum | 1μm |
Measurement Speed | Maximum 5000mm/s |
Force | 1.0-1.5N |
External Output | Data Interface、USB |
Display | 7-digit Liquid Crystal Display |
Probe | Spherical Probe, Flat Probe, Needle Probe |
Unit | mm、inch ( Convertible ) |
Operating Environment | Temperature:0-40°C;Humidity:20-80% |
Measuring Table | 400x300mm Marble |
Power Adapter | Input:AC100-240V 50/60HZ Output:DC5V/1A |
Standard Accessories | Marble Table, Spherical Probe, Flat Probe, Needle Probe |
Optional Accessories | Special-shaped Probe, Low Force Measuring Device, Mobile power supply |
Dimension | 400×300×387mm |
