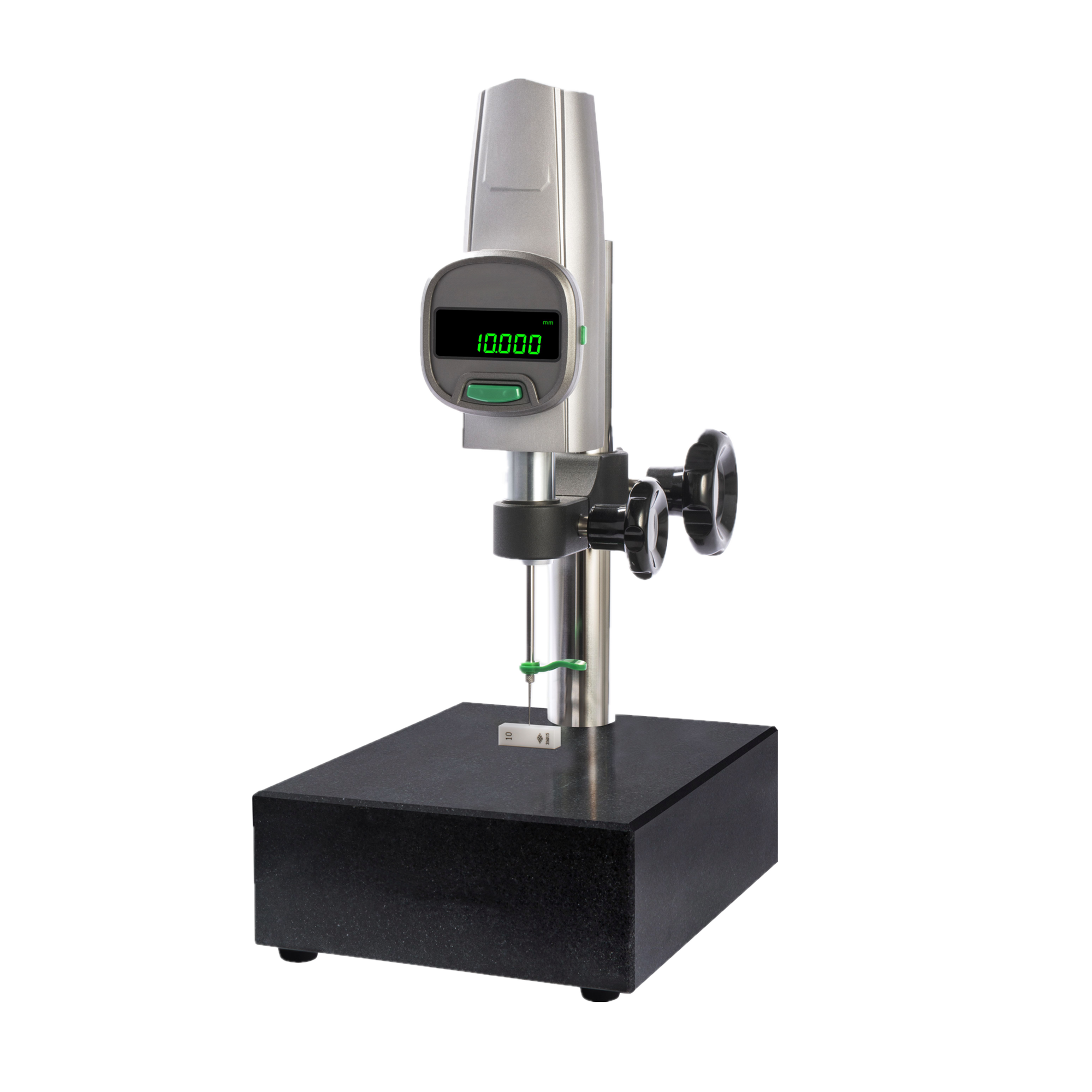

Digital Height Gauge HG50-225A
Production Feature：
- Accuracy≤3um, Resolution 1um
- Height, Depth, Thickness, Flatness Measurement
- Steps and Deep Hole Measuring
- Reset from Anywhere
- MAX, MIN, MAX-MIN Measurement
- TOL Tolerance Setting
- Built-in rechargeable battery, 24 Hours Endurance
- Replaceable Probe
- 7 Bit Liquid Crystal Display Device
- Wired Data Output
- Optional Mobile Power Supply
- High Accuracy Marble Measuring Table

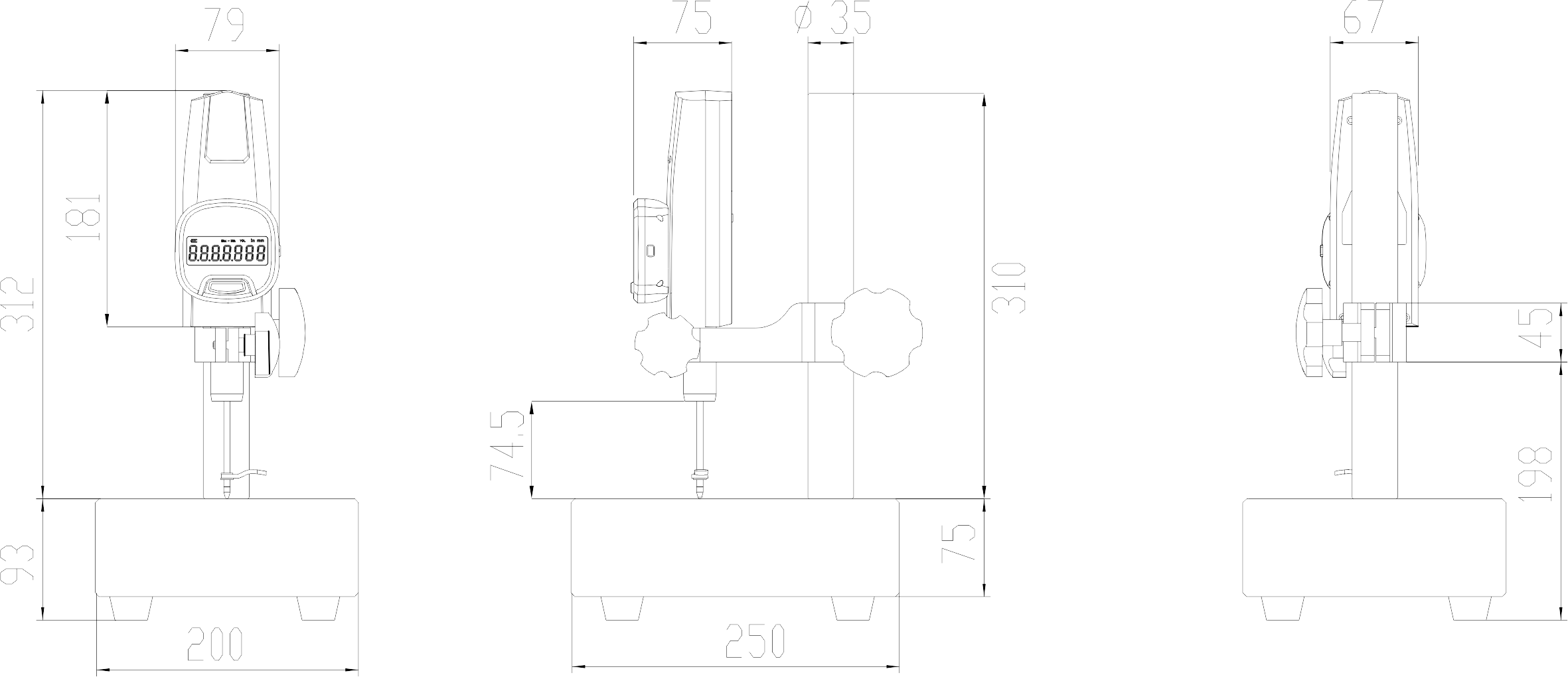

Boundary Dimension：
Technical Specification:
Commodity & Description | Digital Height Gauge |
Model | HG50-225A |
Code# | 501-502 |
Measurement Range | 0-50mm |
Accuracy（20℃） | ≤3μm |
Minimum | 1μm |
Measurement Speed | Maximum 5000mm/s |
Force | 1.0-1.5N |
External Output | Data Interface, USB |
Display | 7 Bit Liquid Crystal Display Device |
Probe | Spherical Probe, Flat Probe, Needle Probe |
Unit | mm, inch (Convertible) |
Operating Environment | Temperature: 0-40°C ; Humidity: 20-80% |
Measuring Table | 200x250mm Marble |
Power Adapter | Input: AC100-240V 50/60HZ; Output: DC5V/1A |
Standard Accessories | Marble Table, Spherical Probe, Flat Probe, Needle Probe |
Optional Accessories | Special-shaped Probe, Low Force Measuring Device, Mobile Power Supply |
Dimension | 250×200×387mm |
Weight | 11.6kg |
