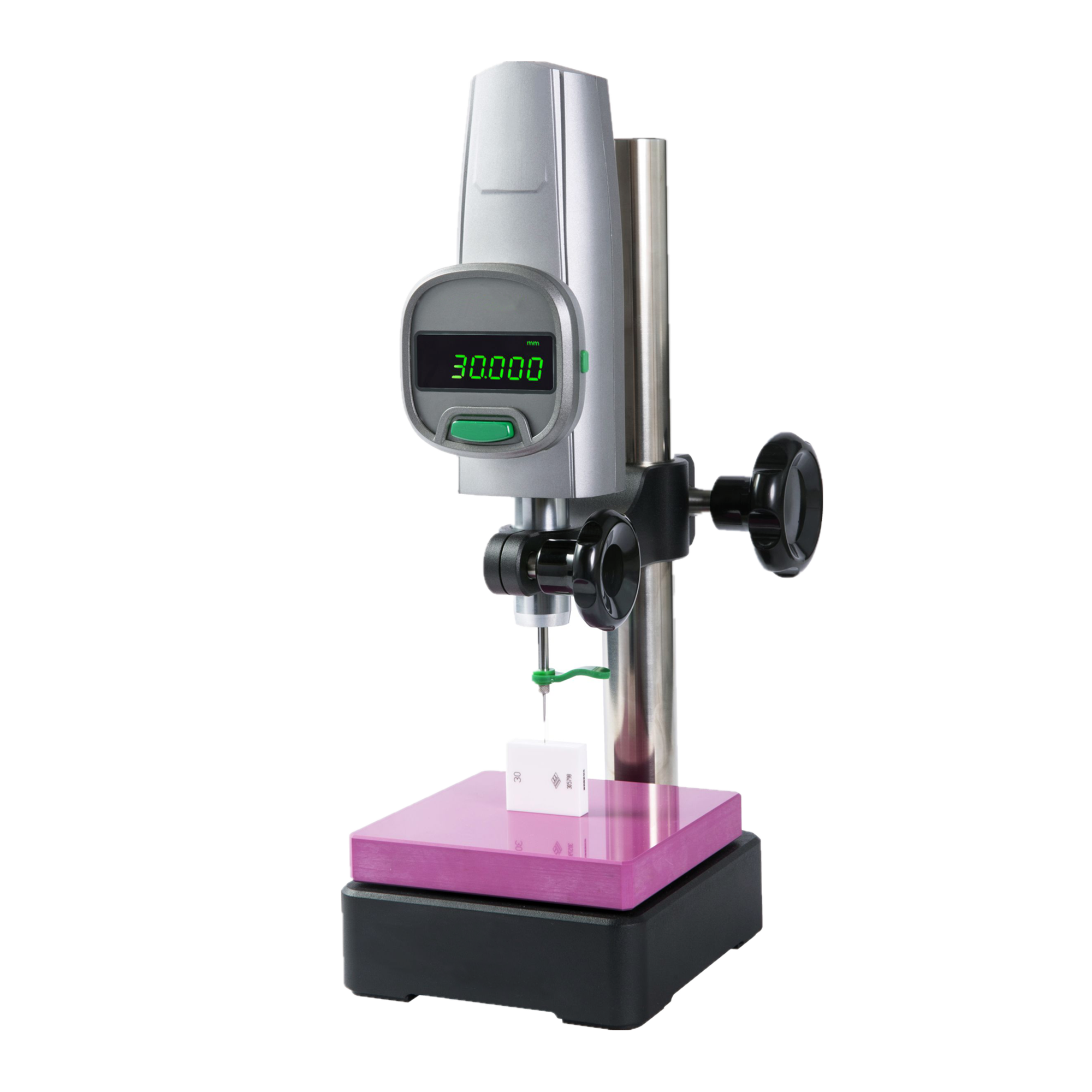

Digital Height Gauge HG50-1313A
Production Feature：
- Accuracy≤3um, Resolution 1um
- Height、Depth、Thickness、Flatness Measurement
- Steps and Deep Hole Measuring
- Reset from Anywhere
- MAX, MIN, MAX-MIN Measurement
- Replaceable Probe
- 7 Bit Liquid Crystal Display Device
- Wired Data Output
- Optional Mobile Power Supply
- High Accuracy Ceramic Measuring Table

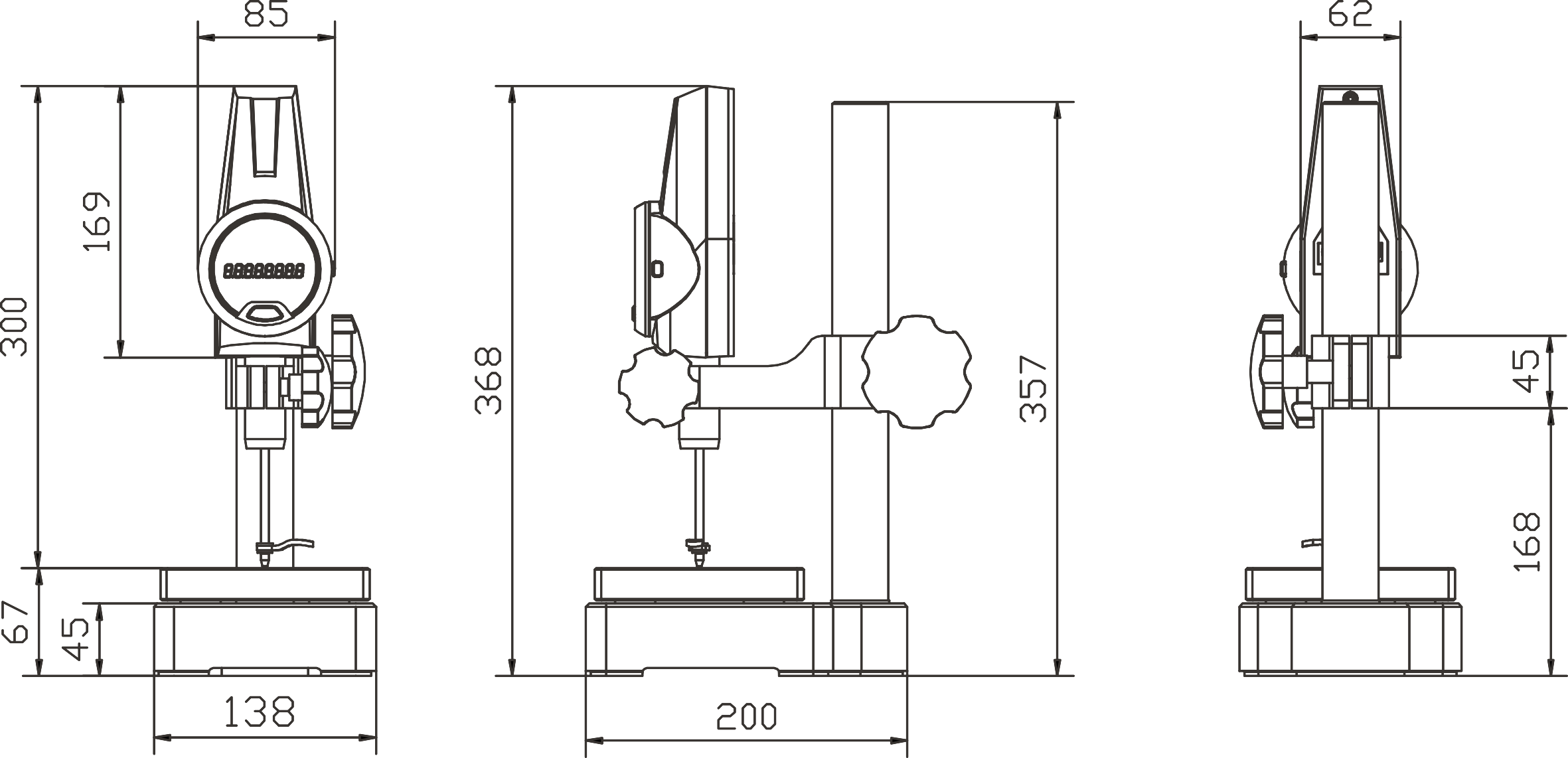

Boundary Dimension：
Technical Specification：
Commodity & Description | Digital Height Gauge |
Mode | HG50-1313A |
Code# | 501-512 |
Measurement Range | 0-50mm |
Accuracy（20℃） | ≤3μm |
Minimum | 1μm |
Measurement Speed | Maximum 5000mm/s |
Force | 1.0-1.5N |
External Output | Data Interface, USB |
Display | 7 Bit Liquid Crystal Display Device |
Probe | Spherical Probe, Flat Probe, Needle Probe |
Unit | mm、inch ( Convertible) |
Operating Environment | Temperature：0-40°C；Humidity：20-80% |
Measuring Table | 130x130mm Ceramic |
Power Adapter | Input：AC100-240V 50/60HZ Output：DC5V/1A |
Standard Accessories | Ceramic Table, Spherical Probe, Flat Probe, Needle Probe |
Optional Accessories | Special-shaped Probe, Low Force Measuring Device, Mobile Power Supply |
Dimension | 200×138×397mm |
Weight | 11.6kg |
