Colorimeter HSC-2
Colorimeter HSC-2 8mm

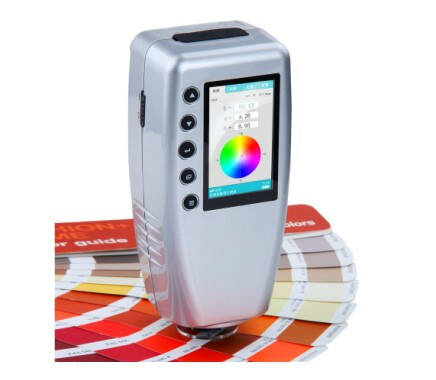

Hand-held Colorimeter HSC-2/HSC-3)
is iWAVE years of painstaking development of the high-precision colorimeter,
serially developed according to the measuring requirements on different
products and gain many optimal achievements with high cost performance.
The most convenient
colorimeter:
Automatic correction
when starting up (national patent)
Environmental, low
energy consumption instrument, high capacity lithium battery
Comfortable observation
with real color screen display
Exquisite and delicate
Technical Specification:
|
Model |
HSC-2 |
|
Color
Space |
CIELAB |
|
Color
Difference Formula |
△E*ab |
|
Measurement
Caliber |
φ8mm |
|
Illumination
Condition |
CIE Recommendation：8/d |
|
Light
Source |
D65 |
|
Sensor |
Photodiode array |
|
Observer |
CIE 10°
Standard observer |
|
Measurement
Range |
L: 0 to 100 |
|
Repeated
Accuracy |
△E<0.08 |
|
Table
Difference |
△E<0.2 |
|
Measurement
Interval |
1 Sec. |
|
Storage
Capacity |
Type sample data : 100 groups with testing
sample data: 100 groups |
|
Lifetime
of Bulb |
5 years more than 1.6 million measurements |
|
Display
Screen |
TFT true color 2.8inch@(16:9) |
|
Language |
English/Simplified Chinese |
|
Interface
of External |
USB2.0 (USB-B) RS-232 (115200bps) |
|
Working
Temperature Range |
0℃-40℃（32℉-104℉） |
|
Storage Temperature
Range |
-20℃-50℃（-4℉-122℉） |
|
Humidity
Range |
Relative humidity less than 85%,without
condensation |
|
Weight |
700g |
|
Size |
199*68*90mm |
|
Package
Size |
400*240*340mm |
|
Battery
Charging Time |
8 hrs |
|
Battery |
Li-ion battery, 5000 times Measurement |
|
Standard
Accessories |
AC
adapter/ 3000mAH Li-ion battery |
|
Optional
Accessories |
Flour measuring device/Micro printer |
