C-Shape Rockwell Hardness Tester PHR Series

Buy Now
Add To Cart
Contact Supplier
Choose your specifcations
$ 1399.00 ~ $ 2999.00
Please select specification
Model:
PHR-4-3
PHR-8-4
PHR-8-10
PHR-20-12
Quantity:
Quick Details
Product Code：
812-143/812-163/812-173/812-183
OEM：
Available
Sample:
Available
Port:
Shenzhen
Payment:
PayPal,L/C,T/T
Place of Origin：
China
Supply Ability：
50 piece per week
Quick Details
OK
Shipping fee
Shipping fee

Structure And Application

  • It is a small, light, accurate portable hardness tester.
  • It consists of C-shape frame, screw arbor, and test head.
  • It could test flat or curve parts as long as the parts could be clamped and the test surface erects the test head.
  • It could be applied in production inspection and acceptance inspection to replace low accurate Leeb hardness tester.



Features

  • Follow Rockwell hardness test method and test condition, and the result is reliable.
  • Fix the instrument to part and clamp it and test the hardness of part, no need to move the part.
  • Test fast, convenient, non-destructive.
  • Structure as simple as micrometer, accurate, convenient, repeatable.
  • As accurate as desk tester, error less than 1.5HRC.



Application Instruction

  • Compared with small type, C-shape type applies part clamping structure and similar reading system as micrometer, so it is prior to small type for its good stability, repeatability, accuracy.

Technical Specifications

Model

PHR-4-3

PHR-8-4

PHR-8-10

PHR-20-12

Code#

812-143

812-163

812-173

812-183

Opening Size

100 x 75mm

200 x 200mm

200 x 250mm

500 x 300mm

Initial Test Force

10 kgf

Total Test Force

60 kgf, 100 kgf, 150 kgf

Test Head

120°Diamond Indenter

1.588 mm carbide  alloy ball

Testing Resolution

0.5HR

Indication Error

Complying with ISO6508,ASTM E18 standards

Repeatability Error

Complying with ISO6508,ASTM E18 standards

Test Range

HRA, HRB, HRC…HRV etc, 15 scales.

Dimension

510x380x180mm

710x470x200mm

720x650x230mm

1020x760x240mm

Weight/ Weight/ Gross Weight

2.2 kg/8.5 kg

4kg/10.7kg

5.5 kg/14.2kg

7.8 kg/21kg

Application Range

Common metal including iron and steel, copper, aluminum


Standard Delivery

Instrument Main Body

------

Rockwell Hardness Block

812-641

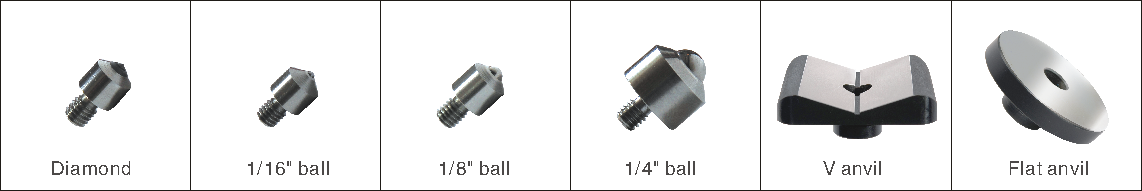

120° Diamond Indenter

812-401

1.588 mm Carbide Alloy Ball Indenter

812-411

V Anvil

------

Flat Anvil

------

Carrying Case

812-901

Operation Manual

------

Warranty Card / Qualified Certificate

------

Packing List

------
